Xerox 8825 - REP 9.12 Toner Cartridge Home Sensor

01/02
4-70
8825/8830 Printer
REP 9.12
Repairs and Adjustments
REP 9.12 Toner Cartridge Home Sensor
Parts List on PL 9.9
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Remove the Developer Module (REP 9.5).
2. Remove the Cartridge Drive Plate (REP 9.14).
NOTE: The Toner Home Sensor is threaded. The wires must be straightened in order to rotate
the sensor for removal.
3. (Figure 1): Remove the Toner Cartridge Home Sensor.

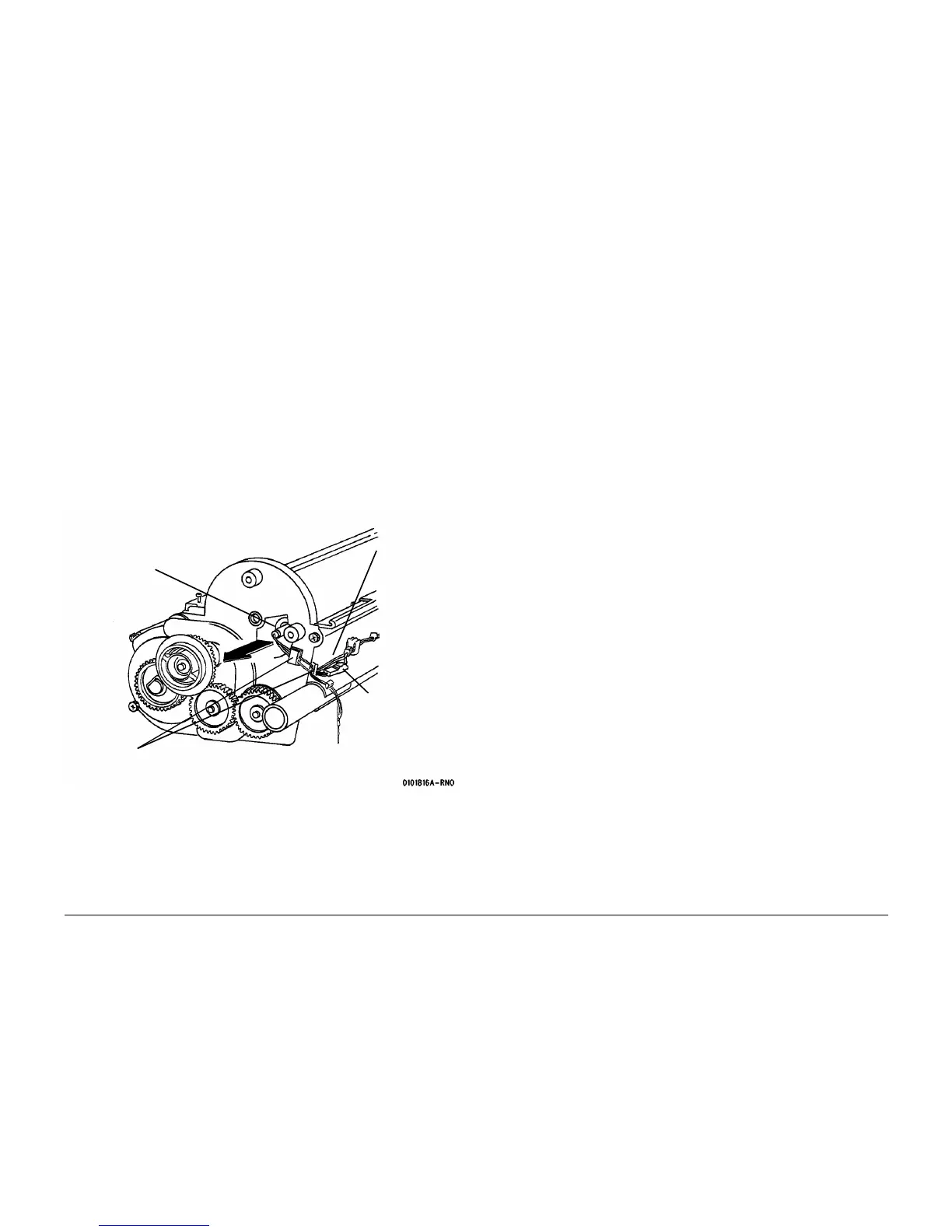

Figure 1 Removing the Toner Cartridge Home Sensor
Replacement
1. Reinstall the Toner Cartridge Home Sensor.
2. Perform the Toner Cartridge Home Sensor Adjustment (ADJ 9.5).
1
Disconnect Q2
3
Straighten the
wires
4
Remove the Toner
Cartridge Home
Sensor
2
Remove the wires from
the fasteners (2 places)
