01/02
4-29
8825/8830 Printer
REP 8.7
Repairs and Adjustments
REP 8.7 Sheet Pinch Rolls - 8830 and 8825 with Tag/MOD
90
Parts List on PL 8.3
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. Remove the Fabric Guide (REP 8.9).
4. Remove the Pressure Plates (REP 8.5).
5. Turn the Media Transport over.
6. (Figure 1): Remove the Sheet Pinch Rolls.

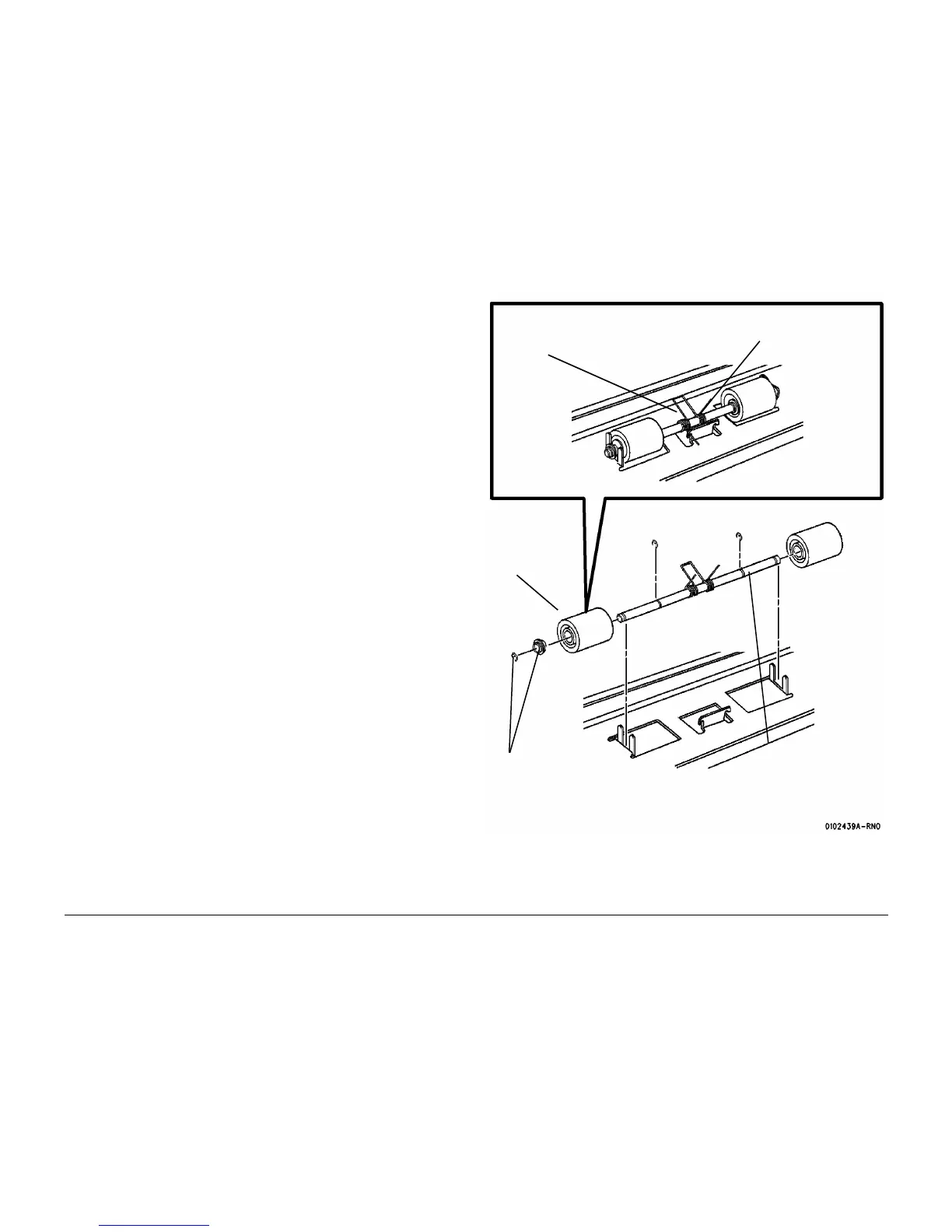

Figure 1 Removing the Sheet Pinch Rolls
2
Remove the spring from
under the edge of the
channel
1
Unlatch the spring (both
ends)
3
Remove the Sheet
Pinch Roll Assembly
4
Remove the E-rings and
bearings (one each end)
5
Remove the
Sheet Pinch Rolls
(one each end)
To Next Page
