01/02
4-54
8825/8830 Printer
REP 9.5
Repairs and Adjustments
REP 9.5 Developer Module
Parts List on PL 9.8
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
CAUTION
Before removing the Developer Module, ensure that there is a clean area on which to place the
assembly.
1. Loosen the screws and open the Rear Cover.
2. Raise and latch the Top Cover.
3. Raise and hold the Developer Module Cover while lifting and removing the Developer
Module Side Cover.
4. Lower the Top Cover.
NOTE: In the following step, tape the Toner Cartridge dispense holes in order to prevent toner
from pouring out when the Toner Cartridge is tipped up for removal.
5. (Figure 1): Remove the Toner Cartridge.

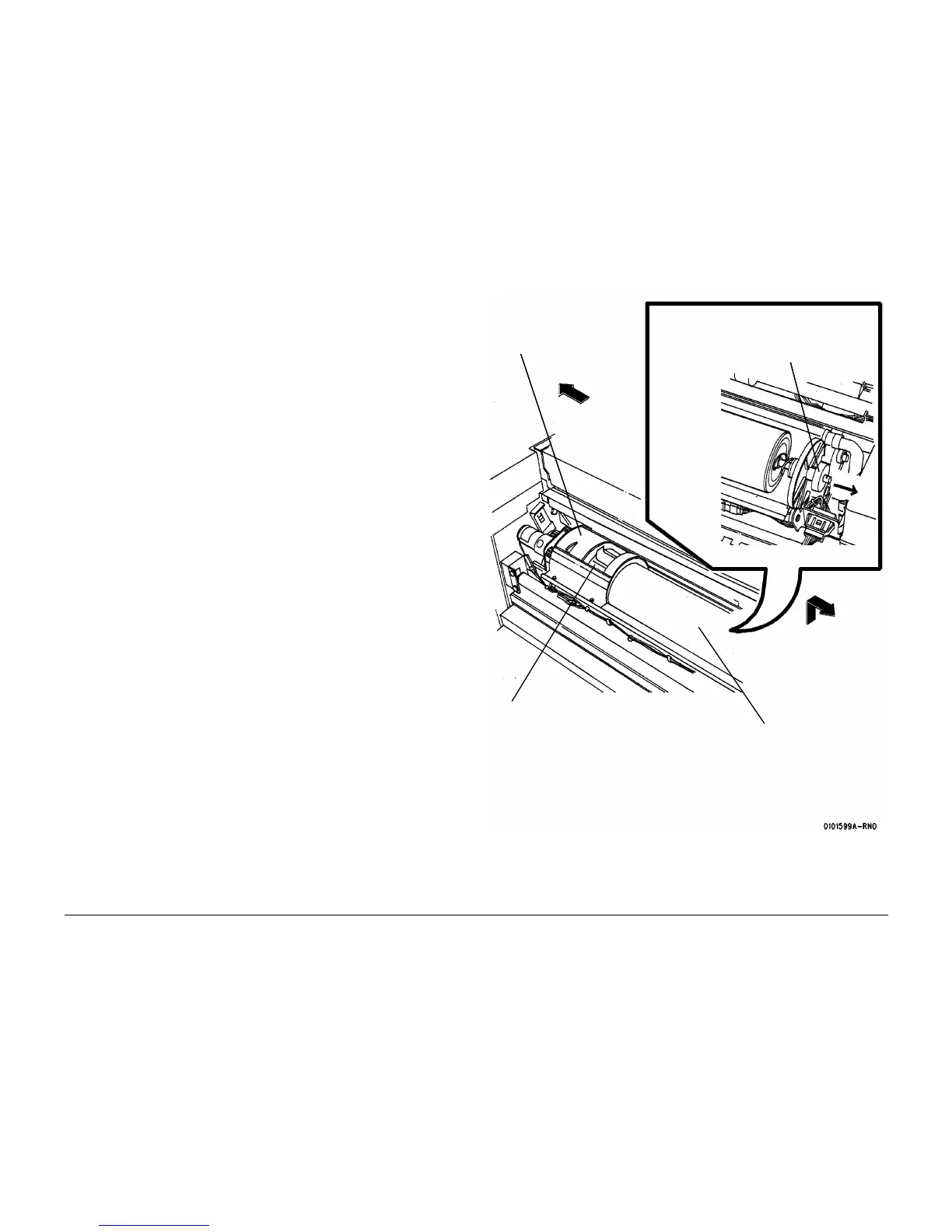

Figure 1 Removing the Toner Cartridge
CAUTION
Ensure that the clamp will not cause interference when the Developer Module is removed.
3
Pull the plunger
while performing
Step 4
1
Slide the cover
open
2
Clean the toner from the
holes in the dispense area
and place a piece of tape
over the holes
4
Remove the Toner
Cartridge
To Next Page
