Xerox 8825 Service Manual

01/02
4-55
8825/8830 Printer
REP 9.5
Repairs and Adjustments
6. (Figure 2): Remove the Developer Module.

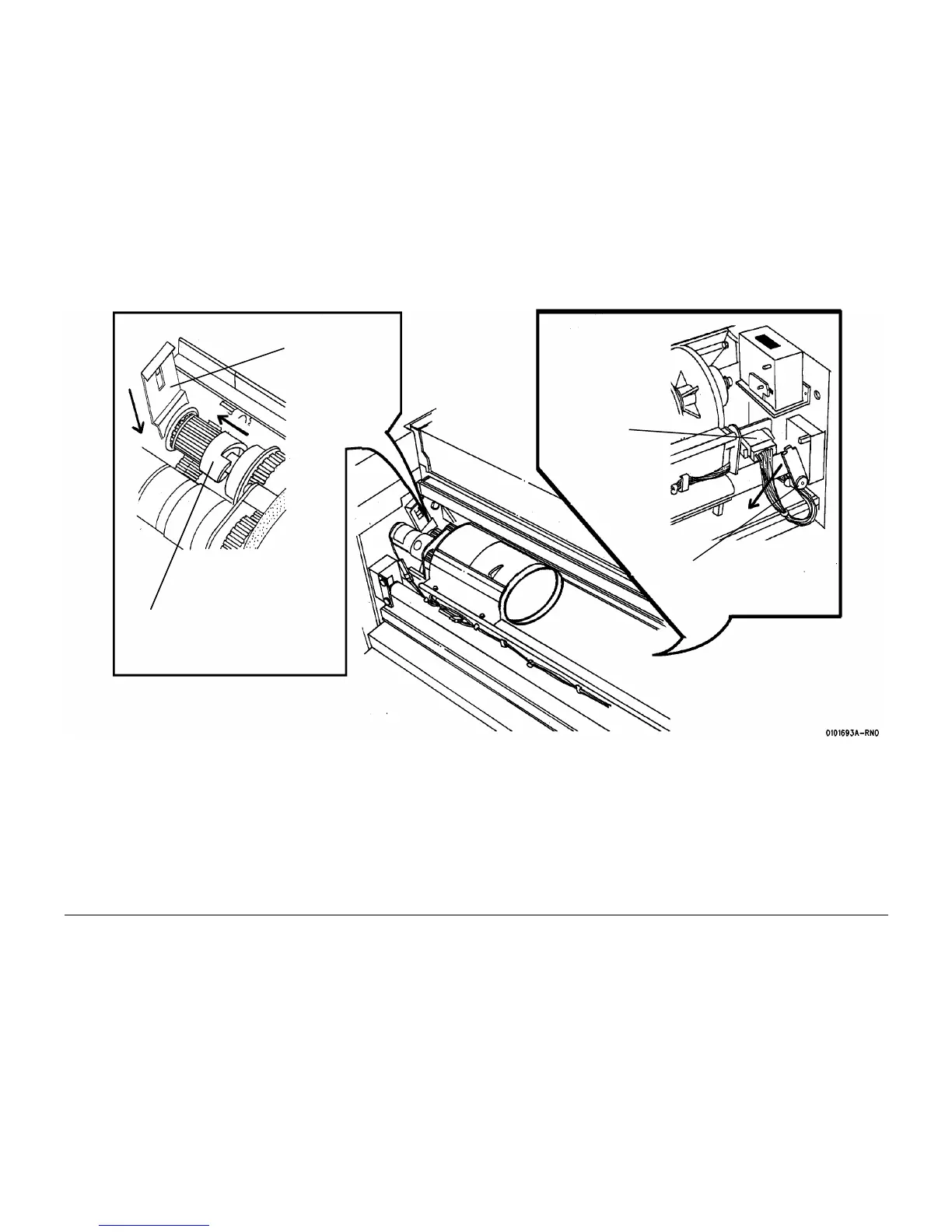

Figure 2 Removing the Developer Module
1
Move the lock into the
groove on the gear
while performing Step
2
2
Move the gear to
disengage
3
Disconnect
A2PP1
4
Press tab and swing
down Clamp Bar
(one each end)
5
Remove the
Developer
Module
