Xerox 8825 - PL 9.9 Developer Module Components (Part 1 of 2)

01/02
5-35
8825/8830 Printer
PL 9.9
Parts Lists

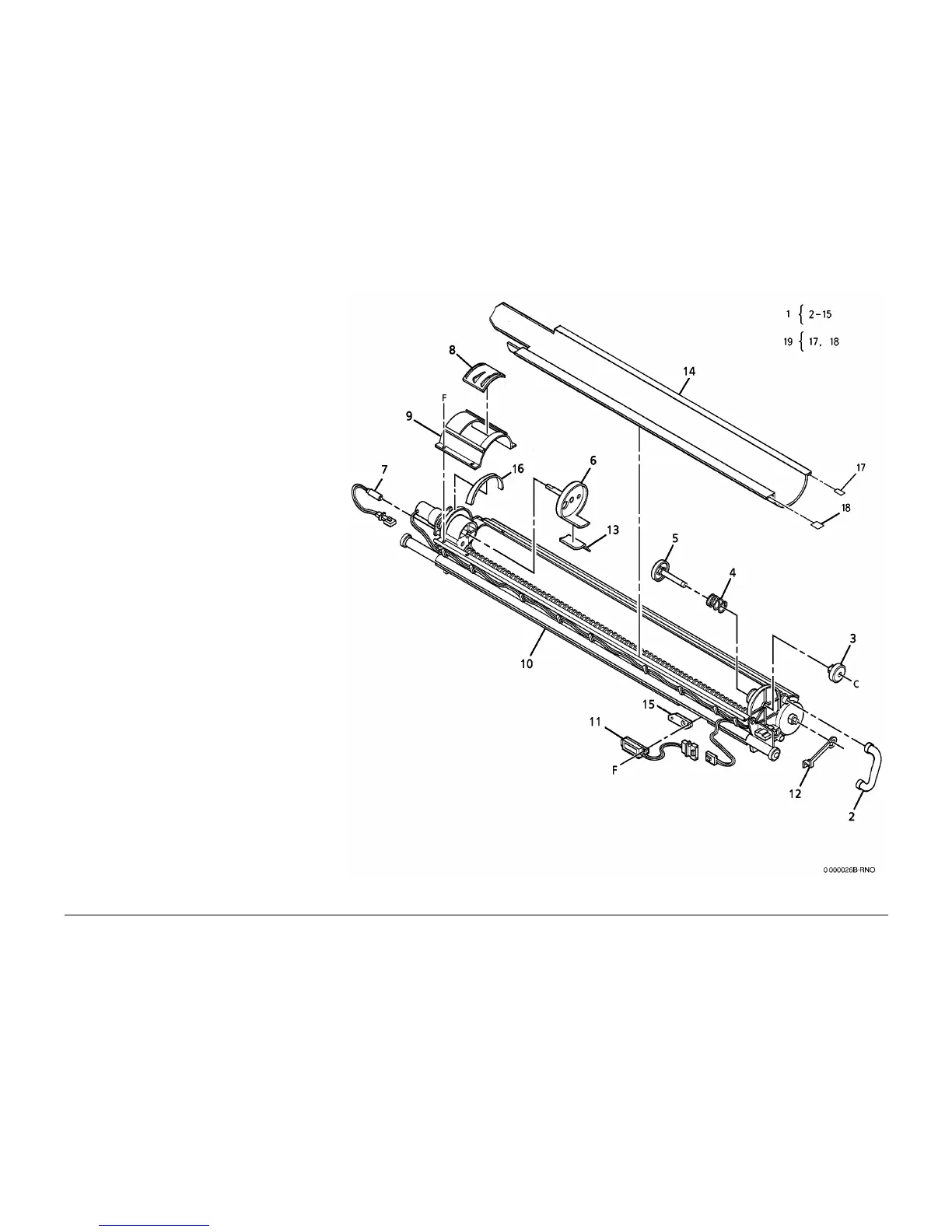

PL 9.9 Developer Module
Components (Part 1 of 2)
Item Part Description
1 – Part of Developer Module
Assembly (REF: PL 9.8 Item 12)
2 054E03181 Pressure Equilizer Tube (REP 9.8)
3 003E19330 Cartridge Knob
4 – Spring (P/O PL 9.9 Item 1)
5 005K01351 Cartridge Hub
6 – Cartridge Drive Plate (P/O PL 9.9
Item 1) (REP 9.14)
7 130K30381 Toner Cartridge Home Sensor
(REP 9.12,ADJ 9.5)
8 002E40470 Top Shield Door
9 055K13840 Top Shield
10 – Developer Frame (P/O PL 9.9 Item
1)
11 130K53300 Toner Sensor (REP 9.11)
12 019E15551 Bias Clip
13 001E23080 Toner Strip
14 055K13830 Sump Shield (REP 9.13)
15 – Sensor Spacer (P/O PL 9.9 Item 1)
16 035E12210 Seal
17 – Foam Gasket (P/O PL 9.9 Item 19)
18 – Foam Gasket (P/O PL 9.9 Item 19)
19 604K00080 Seal Repair Kit (W/TAG 51)
