01/02
5-11
8825/8830 Printer
PL 1.3
Parts Lists

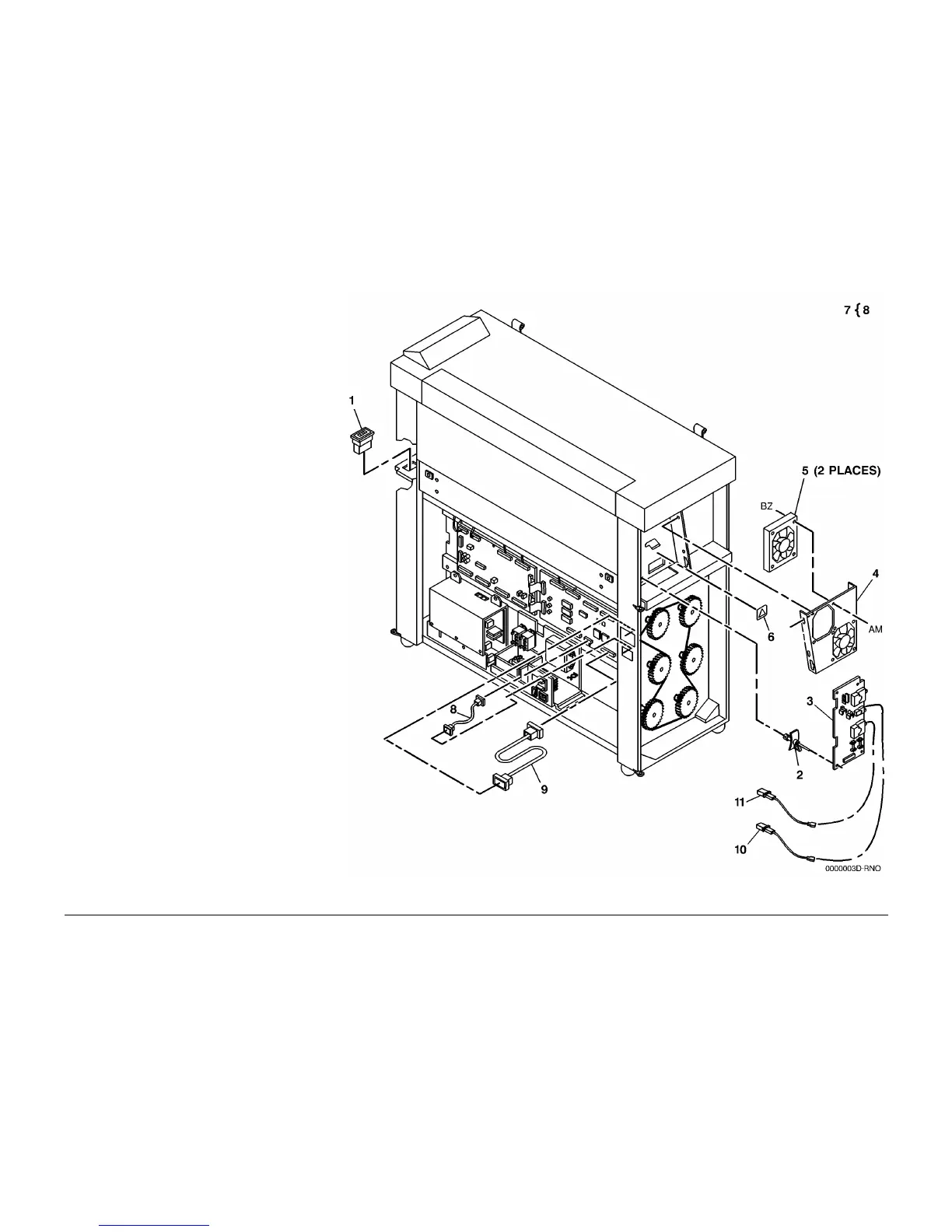

PL 1.3 DC Electrical Components
Item Part Description
1 111K00021 Media Counter
2 – Standoff (Not Spared)
3 105K13542 High Voltage Power Supply (REP
3.2)
4 054K12300 Fan Duct
5 127E11240 Fan
6 092E36450 Charge Corotron Label (Red Arrow)
7 600K60900 Diagnostic Kit
8 – Harness (P/O PL 1.3 Item 7)
9 162K32650 Folder Enablement Harness
10 117K26200 Transfer Corotron Harness
11 117K26191 Detack Corotron Harness
To Next Page
