8825/8830 Printer
REP 8.3
Repairs and Adjustments
REP 8.3 Buckle Switch
Parts List on PL 8.4
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. Remove the Fabric Guide (REP 8.9).
4. Remove the Pressure Plates (REP 8.5).
5. (Figure 1): Remove the Buckle Switch.
a. Remove the screw.
b. Carefully pull the Buckle Switch Assembly until the connector can be disconnected.
c. Disconnect the connector.
d. Remove the Buckle Switch from the bracket.

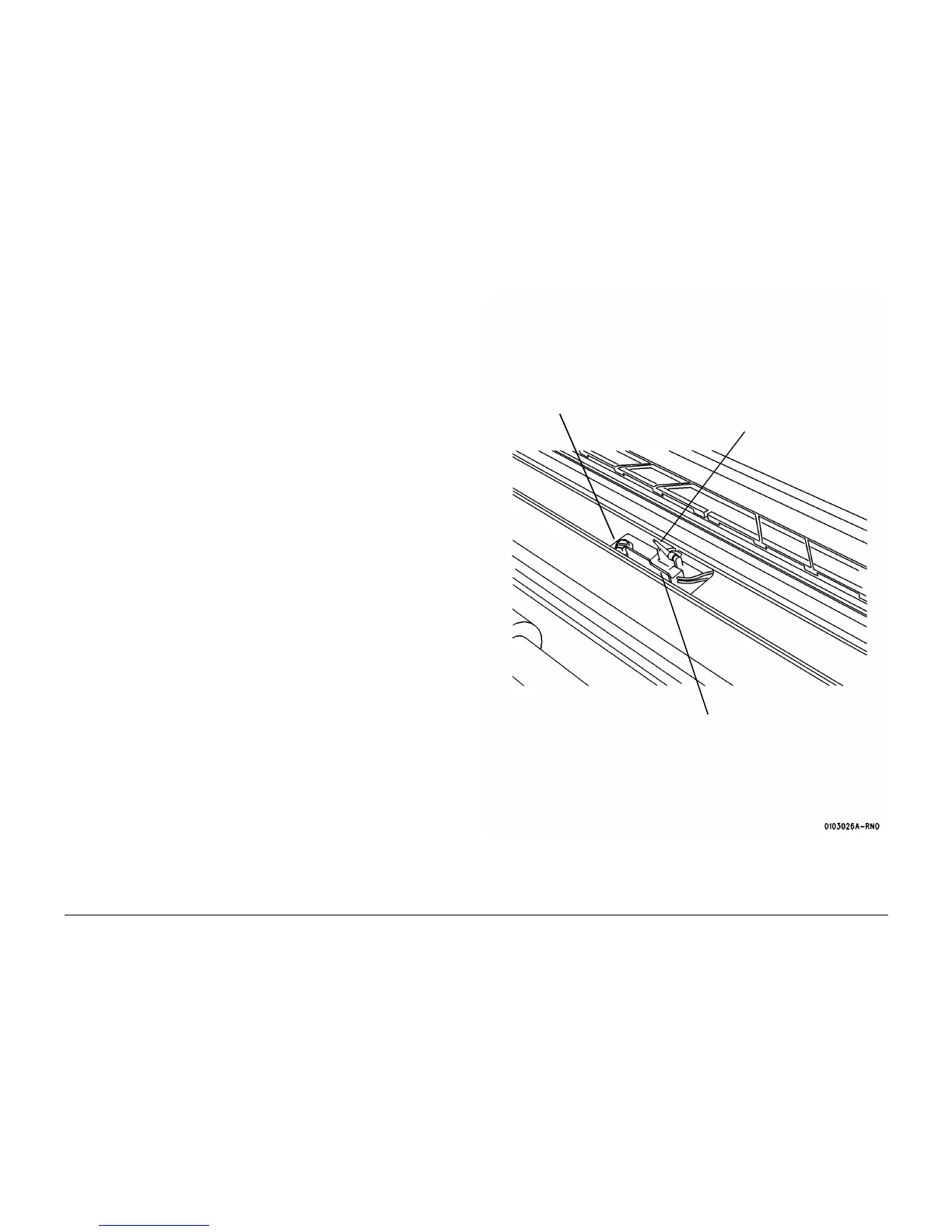

Figure 1 Removing the Buckle Switch
Buckle Switch Assembly
Buckle Switch
Screw
To Next Page
