01/02
4-15
8825/8830 Printer
REP 7.9
Repairs and Adjustments
REP 7.9 Roll Drive Motor
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. (Figure 1): Remove the Roll Drive Motor Assembly.

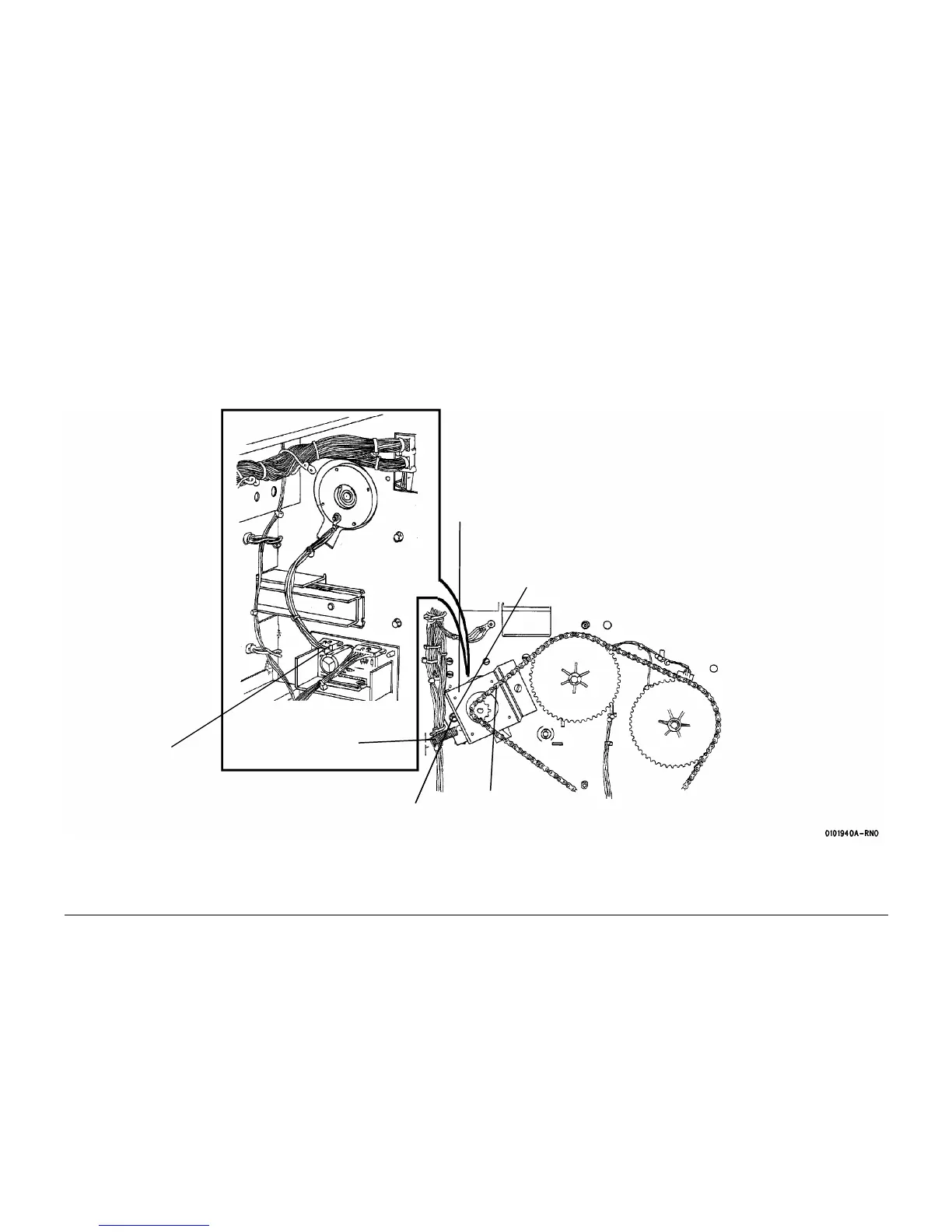

Figure 1 Removing the Roll Drive Assembly
3. (Figure 2): Remove the bracket from the Roll Drive Motor.
2
Remove the spring
1
Disconnect P/J 2
3
Loosen the screws
4
Move the bracket and disconnect the chain
from the drive sprocket
5
Remove the screws (2)
6
Remove the Roll Drive
Motor Assembly
To Next Page
