REP 9.7 Developer Material
Parts List on (Refer to svc.8830prt.17324 Machine Consumables, Sec-
tion 6.)
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Remove the Developer Module (REP 9.5).
CAUTION
Do not rotate the Developer Module in the vertical position. This may cause Developer Material
to get into the Toner Cartridge Clutch (located at the end of the Developer Module).
2. Place the Developer Module on a drop cloth on the floor.
3. (Figure 1): Remove the Sump Shield from the Developer Module.

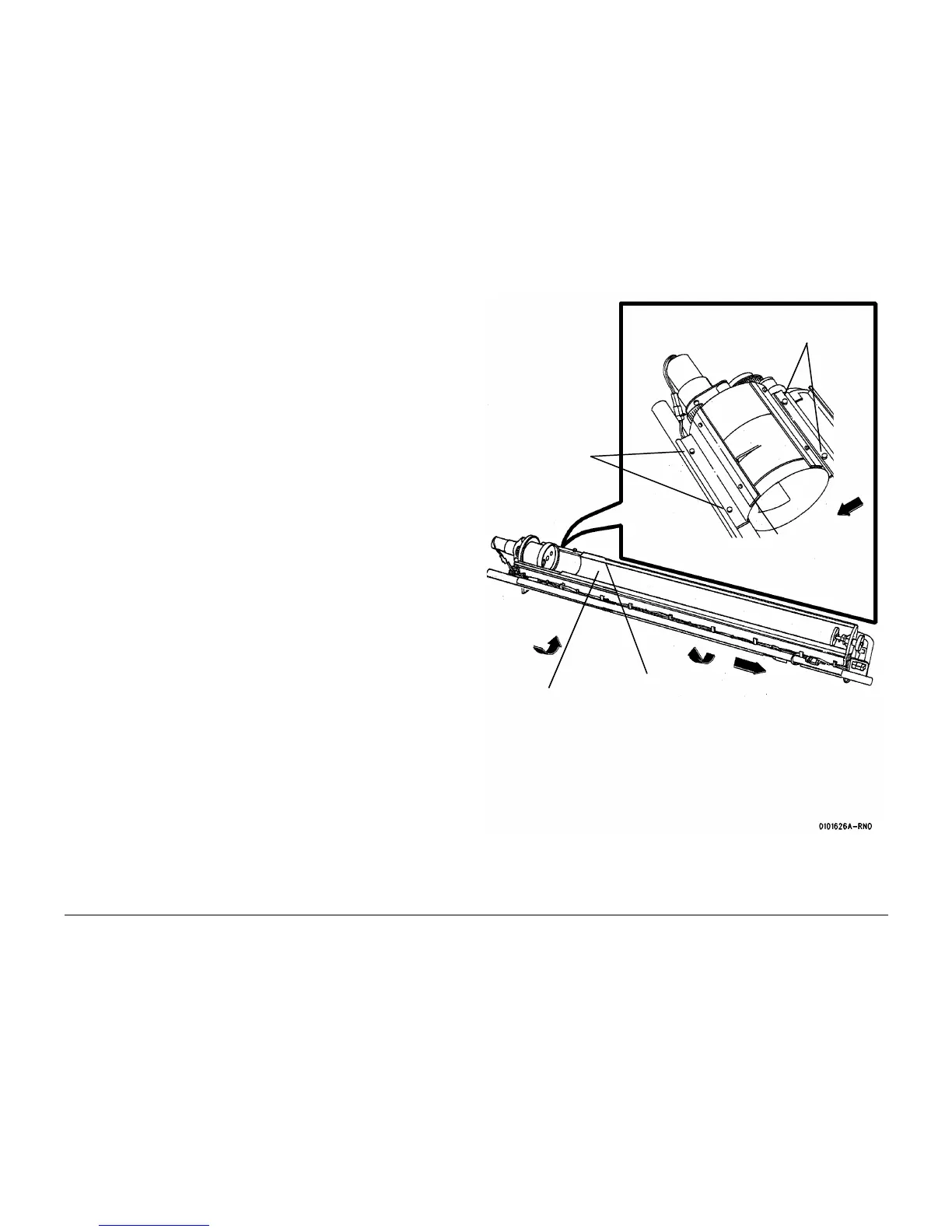

Figure 1 Removing the Sump Shield from the Developer Module
NOTE: Rotate the Developer Module away from the Magnetic Roll in the following step.
1
Remove the screws (2)
2
Loosen the screws
(2)
3
Remove the Top
Shield
4
Remove the Sump
Shield from under
the edge (full
length)
5
Remove the Sump
Shield
To Next Page
