8825/8830 Printer

PL 9.10

Parts Lists

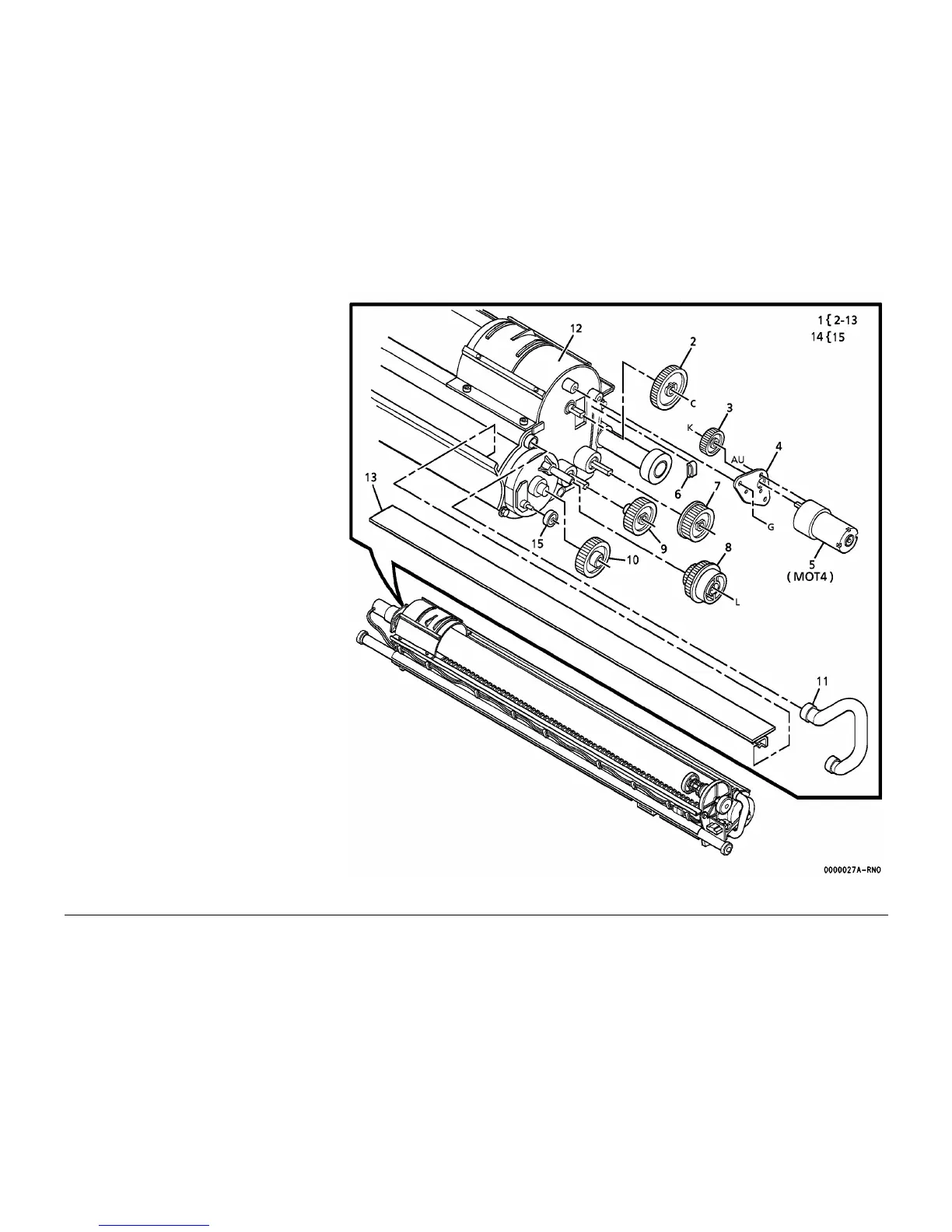

PL 9.10 Developer Module

Components (Part 2 of 2)

Item Part Description

1 – Part of Developer Module

Assembly (REF: PL 9.8 Item 12)

2 007E16330 Cartridge Gear (44T)

3 007E16341 Cartridge Drive Gear (26T)

4 – Motor Mounting Plate (P/O PL 9.10

Item 1)

5 127K22600 Cartridge Drive Motor (MOT4)

(REP 9.6)

6 120E04750 Cable Clip

7 007E14690 Auger Drive Gear (37T)

8 007K05260 Developer Drive Gear (43T/25T)

9 007E14700 Auger Drive Gear (37T)

10 007E14710 Magnetic Roll Drive Gear (40T)

11 054E03491 Pressure Equilizer Tube (REP

9.18)

12 – Developer Frame (P/O PL 9.10

Item 1)

13 035K04581 Seal

14 600K58720 DRS Roller Kit

15 – Roller (P/O PL 9.10 Item 14)
