Xerox 8825 - PL 7.4 Roll Supply Drawer Components (Part 2 of 4)

01/02
5-16
8825/8830 Printer
PL 7.4
Parts Lists

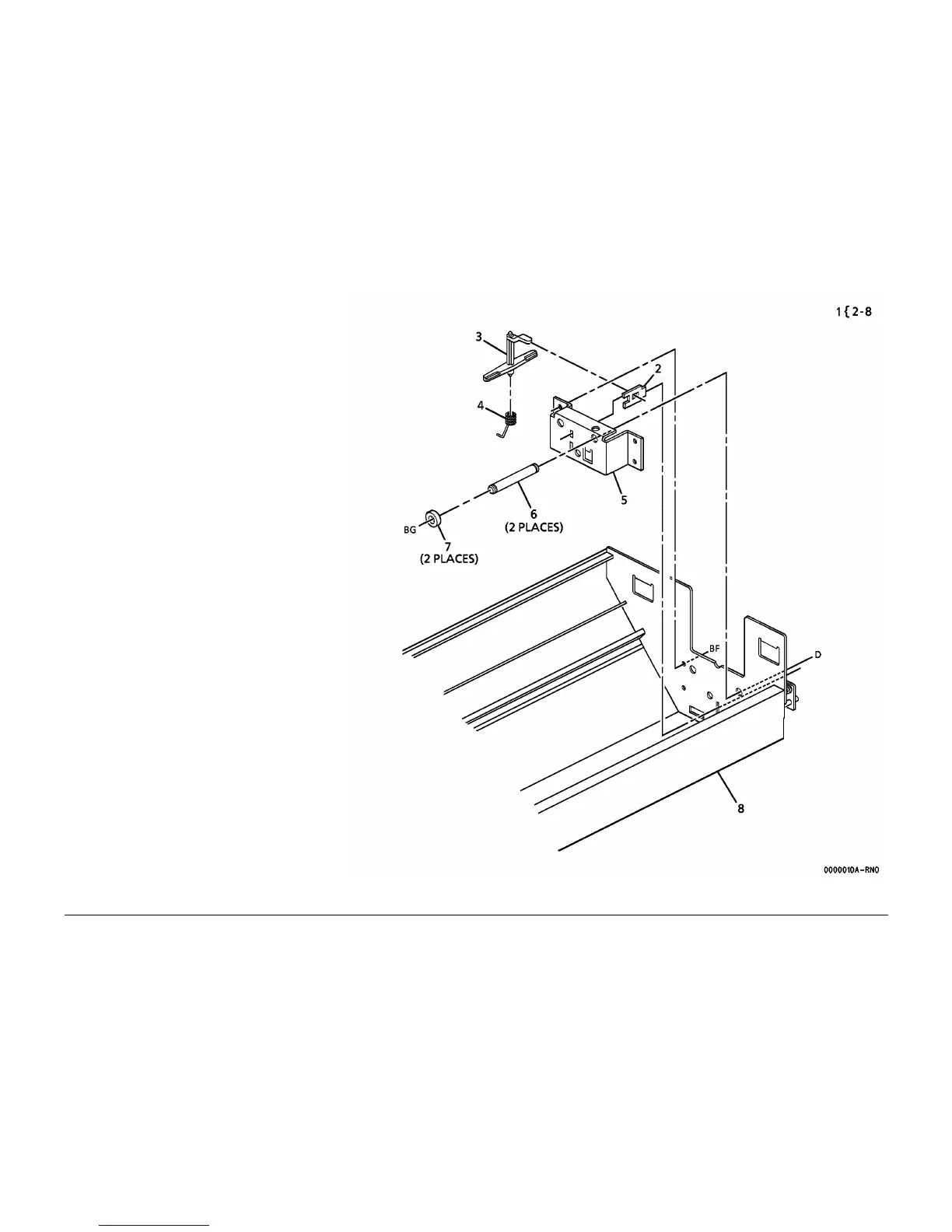

PL 7.4 Roll Supply Drawer
Components (Part 2 of 4)
Item Part Description
1 – Part of Roll Supply Drawer
Assembly (REF: PL 7.1 Item 3)
2 – RH Roll Lock (P/O PL 7.4 Item 1)
3 003E17610 Roll Lock
4 009E27340 Roll Lock Spring
5 – RH Cradle Bracket (P/O PL 7.4
Item 1)
6 029E14750 RH Support Pin
7 022E11540 Support Roller
8 – Drawer Frame (P/O PL 7.4 Item 1)
