Xerox 8825 - PL 7.5 Roll Supply Drawer Components (Part 3 of 4)

01/02
5-17
8825/8830 Printer
PL 7.5
Parts Lists

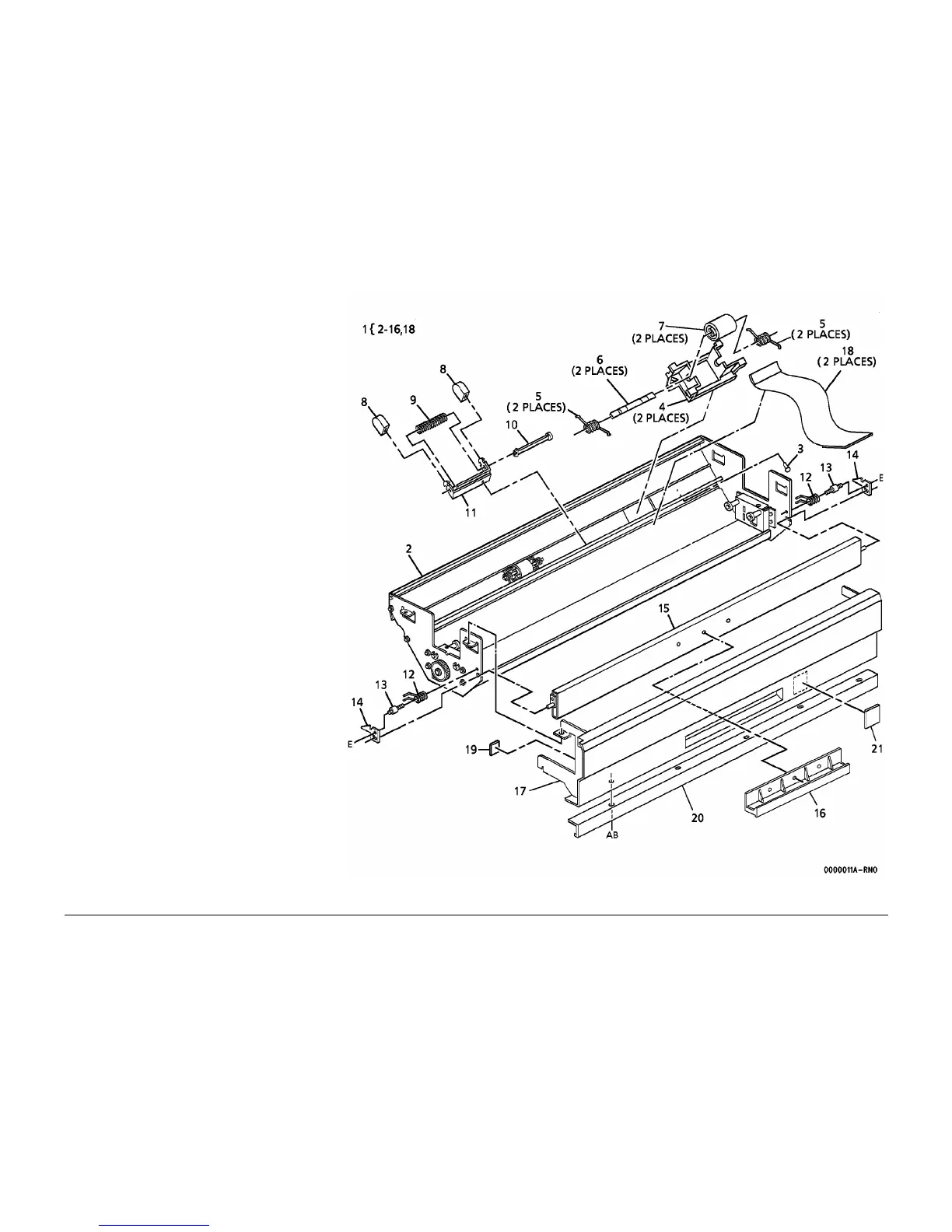

PL 7.5 Roll Supply Drawer
Components (Part 3 of 4)
Item Part Description
1 – Part of Roll Supply Drawer
Assembly (REF: PL 7.1 Item 3)
2 – Drawer Frame (P/O PL 7.5 Item 1)
3 017E04250 Baffle Stop
4 068E17221 Bracket
5 009E27351 Pinch Roll Spring
6 – Pinch Roll Shaft (P/O PL 7.5 Item
1)
7 022E10060 Roll Feed Pinch Roll (REP 7.3)
8 – Lock Release Handle (P/O PL 7.5
Item 1)
9 009E32790 Lock Spring
10 029E14460 Retainer
11 – Latch (P/O PL 7.5 Item 1)
12 009E27330 Drawer Latch Spring
13 029E13701 Latch Pin
14 – Supply Drawer Latch (P/O PL 7.5
Item 1)
15 003K07581 Handle
16 003E39000 Drawer Handle (W/O TAG 32)
– 003E39001 Drawer Handle (W/TAG 32)
17 048K44880 Drawer Cover
18 038K09190 Paper Guide
19 121E07680 Magnet
20 048E39380 Kickplate
21 891E01960 Drawer Label
– 891E01961 Drawer Label (Optional Drawer)
