01/02
5-20
8825/8830 Printer
PL 7.8
Parts Lists

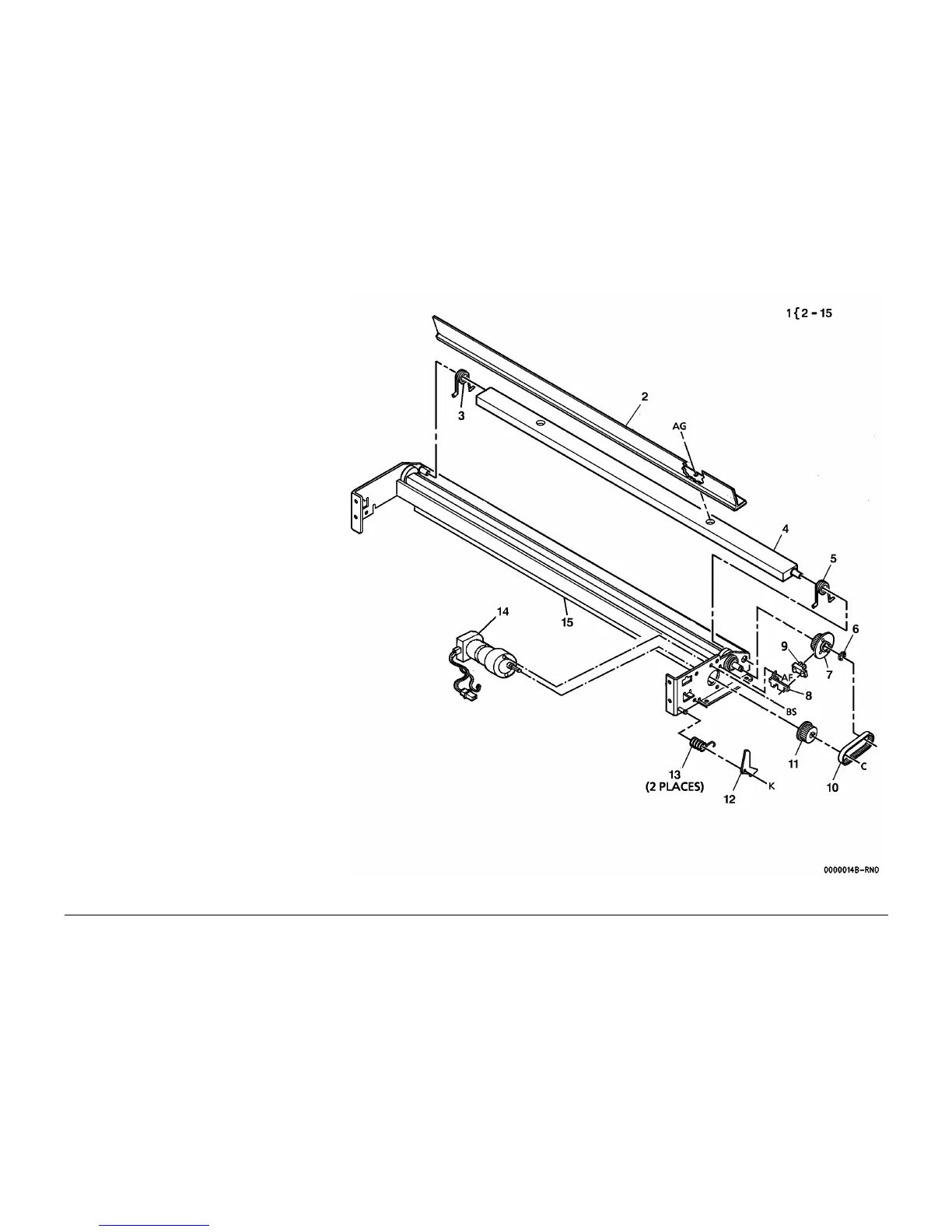

PL 7.8 Media Cutter Components
Item Part Description
1 – Part of Media Cutter Assembly
(REF: PL 7.7 Item 1)
2 038K06601 Media Exit Guide
3 009E30860 LH Spring
4 – Cutter Stationary Bar (P/O PL 7.8
Item 1)
5 009E30870 RH Spring
6 028E07430 Retaining Ring
7 020E18830 Cutter Drive Pulley
8 – Sensor Bracket (P/O PL 7.8 Item
1)
9 130E03250 Cutter Home Sensor (REP 8.15)
10 423W57550 Drive Belt
11 020E20680 Drive Pulley (34T)
12 003E16521 Cutter Latch
13 009E27340 Latch Spring
14 127K26580 Cutter Motor
15 – Media Cutter Frame (P/O PL 7.8
Item 1)
To Next Page
