01/02
4-56
8825/8830 Printer
REP 9.5
Repairs and Adjustments
Replacement
1. (Figure 3): Reinstall the Developer Module.

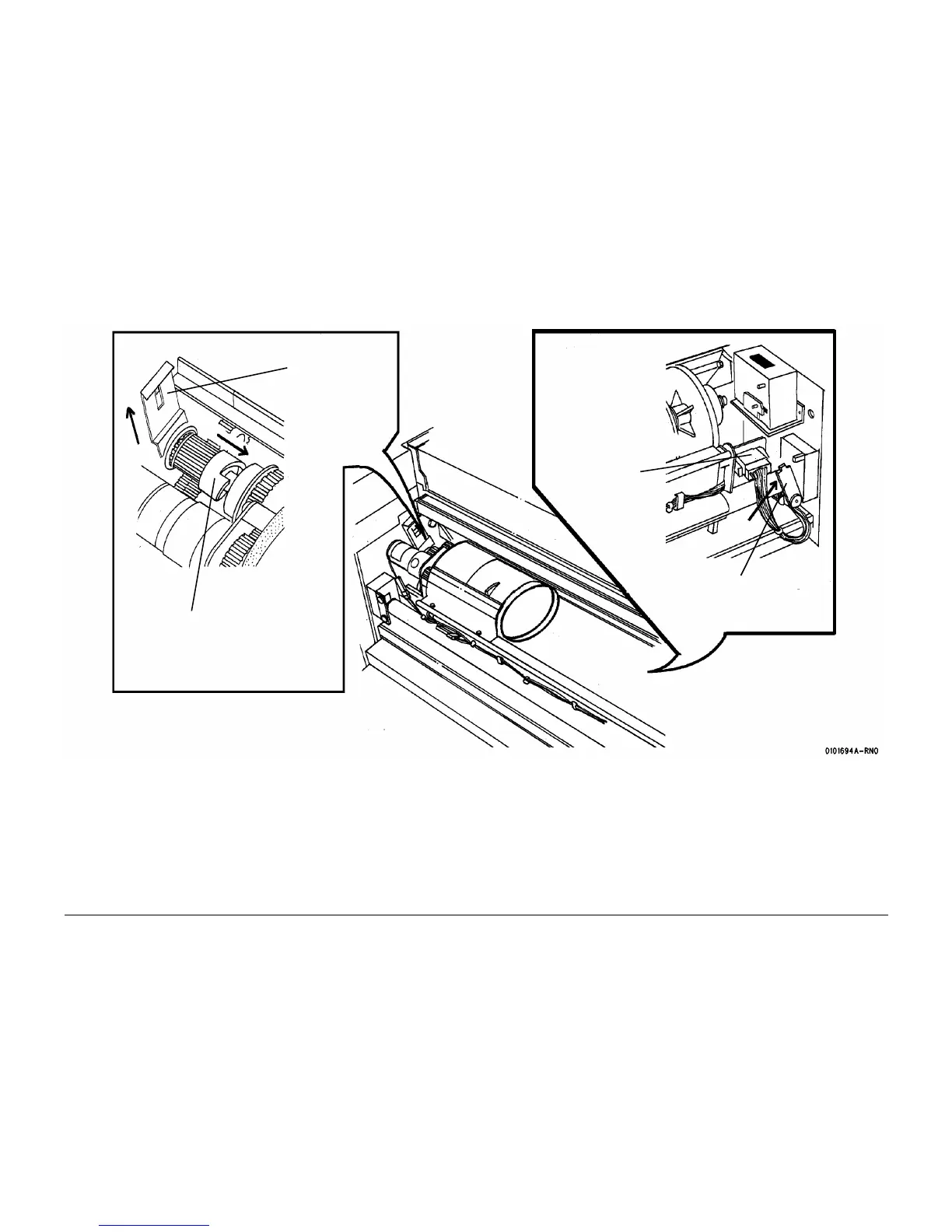

Figure 3 Reinstalling the Developer Module
CAUTION
Ensure that the Developer Module is fully reinstalled in the brackets.
CAUTION
Ensure that the gear is free to engage the Developer Module drive gears.
NOTE: To ensure that the Toner Cartridge is correctly engaged in the Drive Plate, rotate the
cartridge in both directions.
5
Move the gear to
engage
4
Move the lock out of
the groove on the
gear while perform-
ing Step 5
3
Reconnect A2PP1
1
Reinstall the Devel-
oper Module
2
Press tab and swing
up Clamp Bar until it
locks (one each
end)
To Next Page
