Xerox 8825 Service Manual

01/02
4-73
8825/8830 Printer
REP 9.13
Repairs and Adjustments
2. (Figure 1): Remove the Sump Shield.

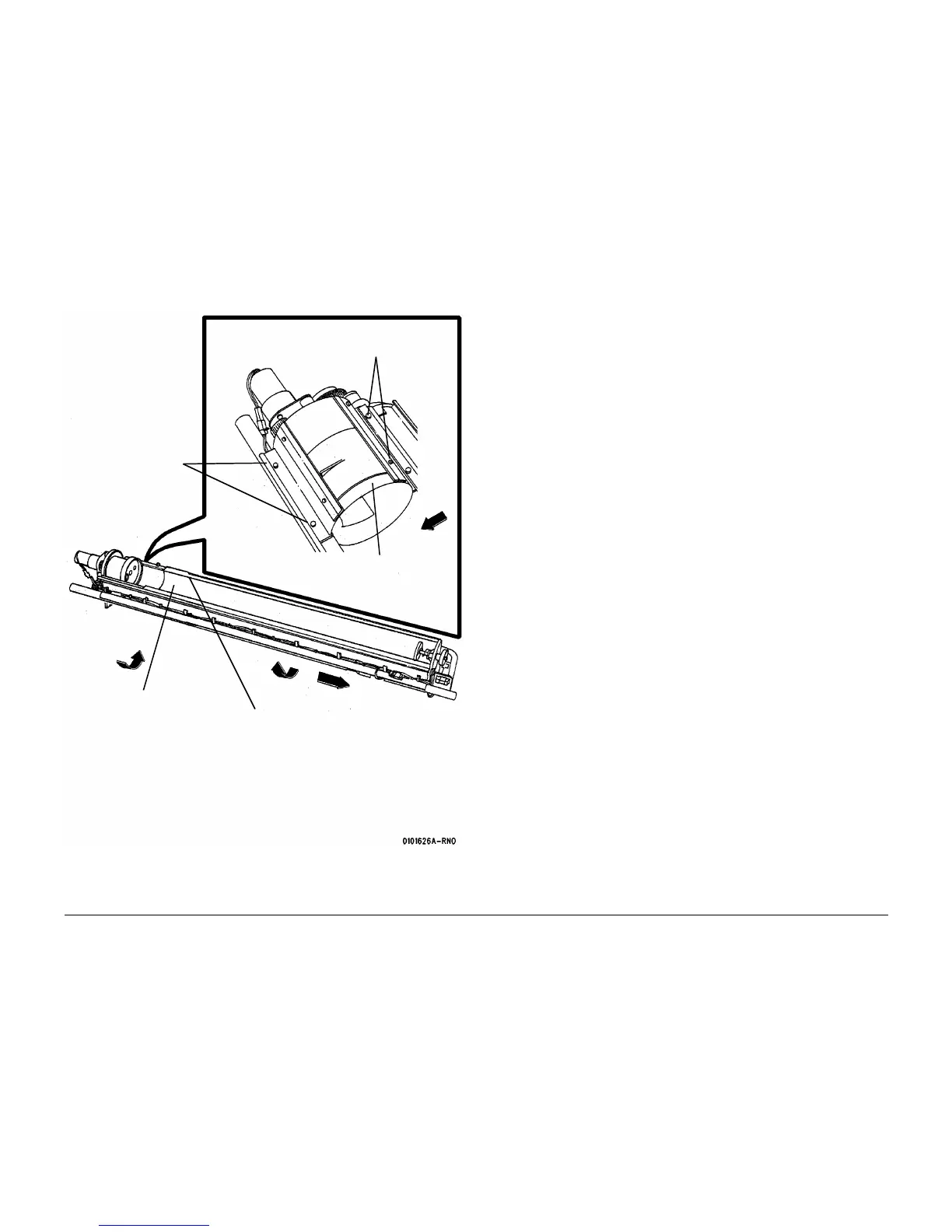

Figure 1 Removing the Sump Shield from the Developer Module
Replacement
CAUTION
Ensure that the full length of the edge of the Sump Shield is under the edge of the housing.
1. (Figure 2): Reinstall the Sump Shield in the Developer Module.
3
Remove the Top
Shield
2
Loosen the screws (2)
1
Remove the screws (2)
5
Remove the Sump
Shield
4
Remove the Sump
Shield from under the
edge (full length)
