Xerox 8825 Service Manual

01/02
4-38
8825/8830 Printer
REP 8.13
Repairs and Adjustments
6. (Figure 1): Remove the Media Feed Drive Belt.

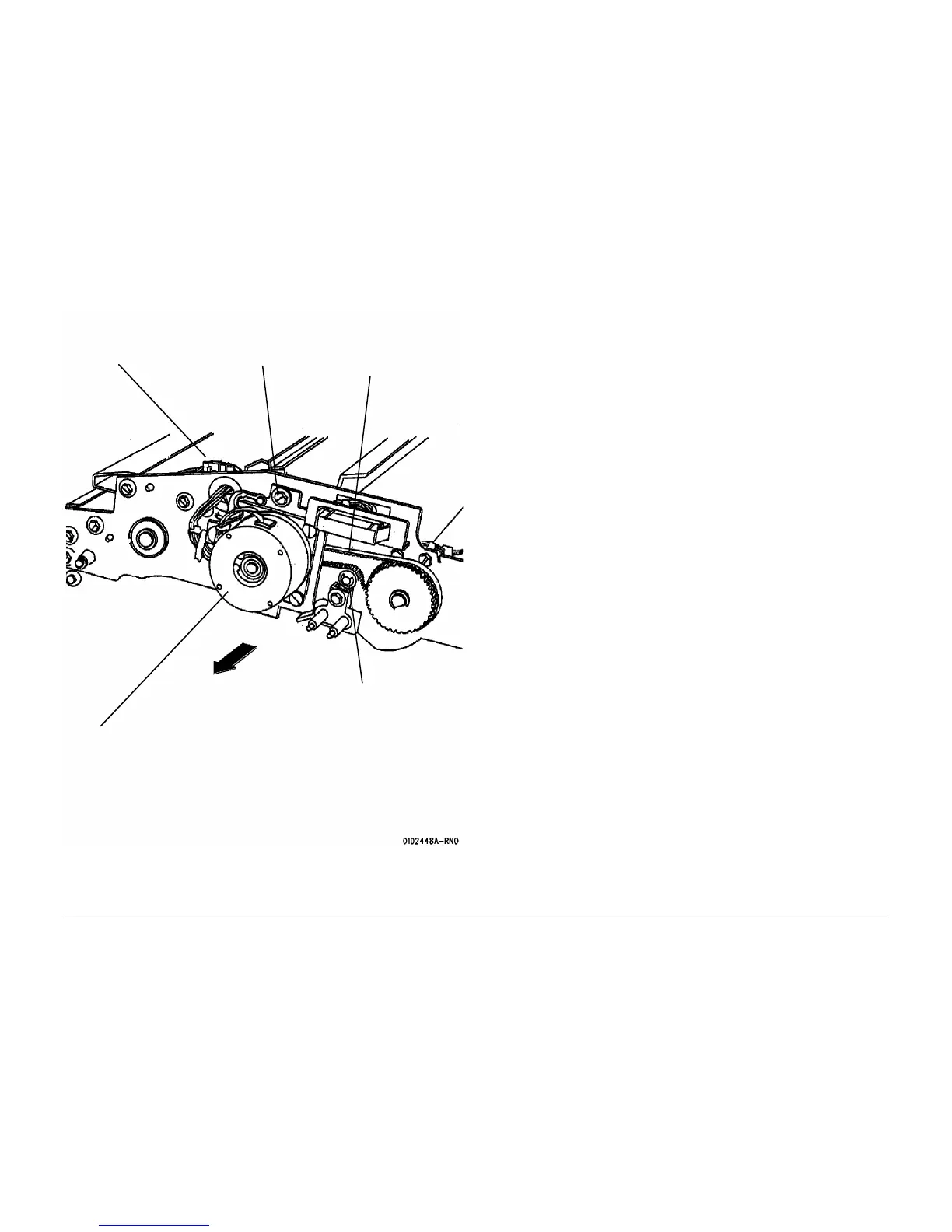

Figure 1 Removing the Media Feed Drive Belt
Replacement
1. Ensure that the belt is over the Idler Pulley.
1
Disconnect the connector
2
Remove the screws
(3)
3
Remove the Motor
Assembly
4
Remove the Media
Feed Drive Belt
Idler Pulley
