01/02
4-80
8825/8830 Printer
REP 9.18
Repairs and Adjustments
Replacement
CAUTION
Do not rotate the Auger Gears individually more than the slight amount required for removal or
to mesh the teeth during reinstallation. If the factory setting of the augers is changed during the
procedure, perform the adjustment procedure, Augers (ADJ 9.6).
NOTE: The gears must be reinstalled with the flanges as shown in order to ensure that all the
gears are secured.
1. (Figure 2): Reinstall the Air Pressure Tubes.

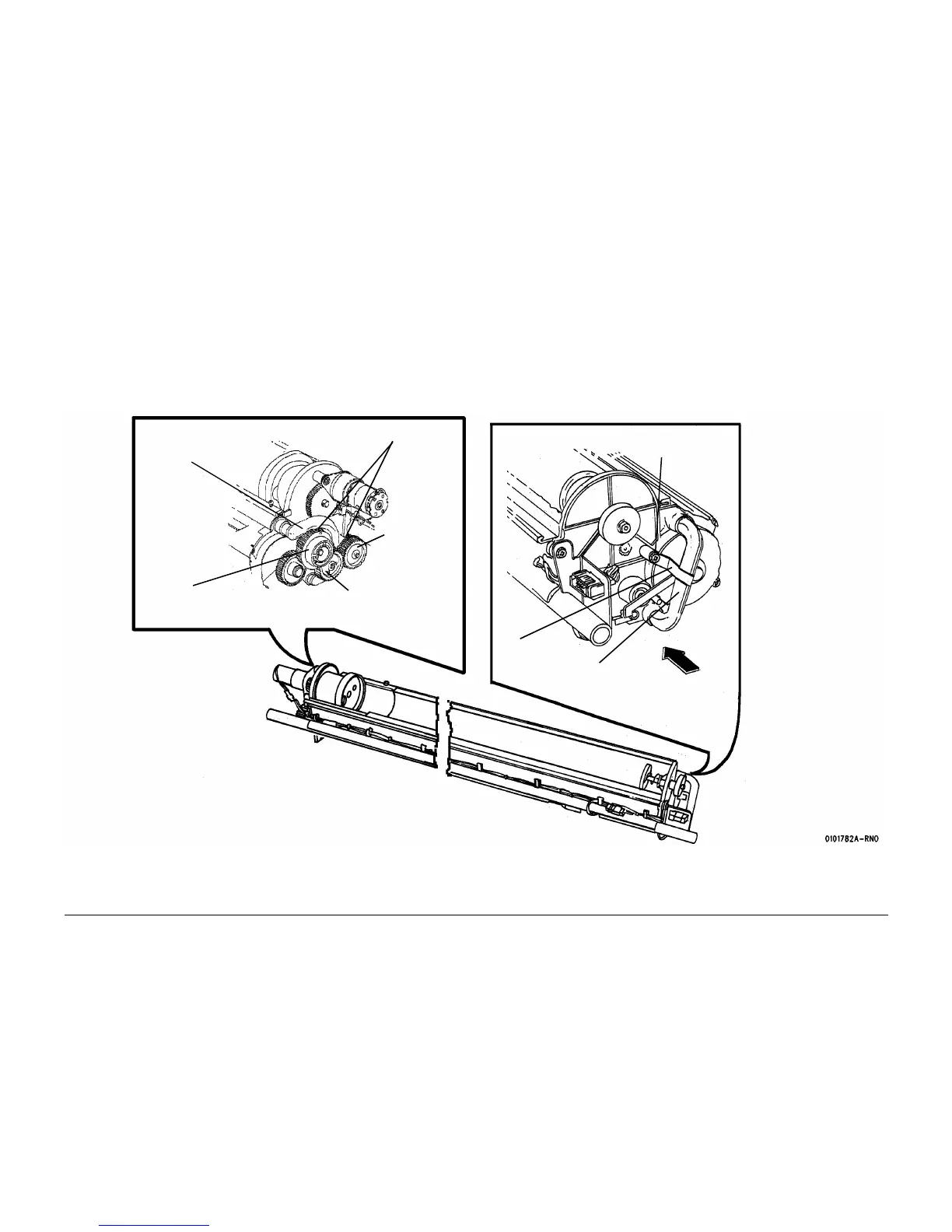

Figure 2 Reinstalling the Air Pressure Tubes
1
Reinstall the Air
Pressure Tube
7
Reinstall the screw
6
Reinstall the Air
Pressure Tube
Retainer
5
Reinstall the Air
Pressure Tube
4
Reinstall the gear
and the Grip Ring
3
Reinstall the
gear
2
Reinstall the
gear
Flanges
To Next Page
