Xerox 8825 Service Manual

01/02
4-42
8825/8830 Printer
REP 8.17
Repairs and Adjustments
8. (Figure 2): Remove the Baffle.
9. Remove the Registration Drive Roll by pushing the bearings out of the frame and moving
the roll as required for removal.

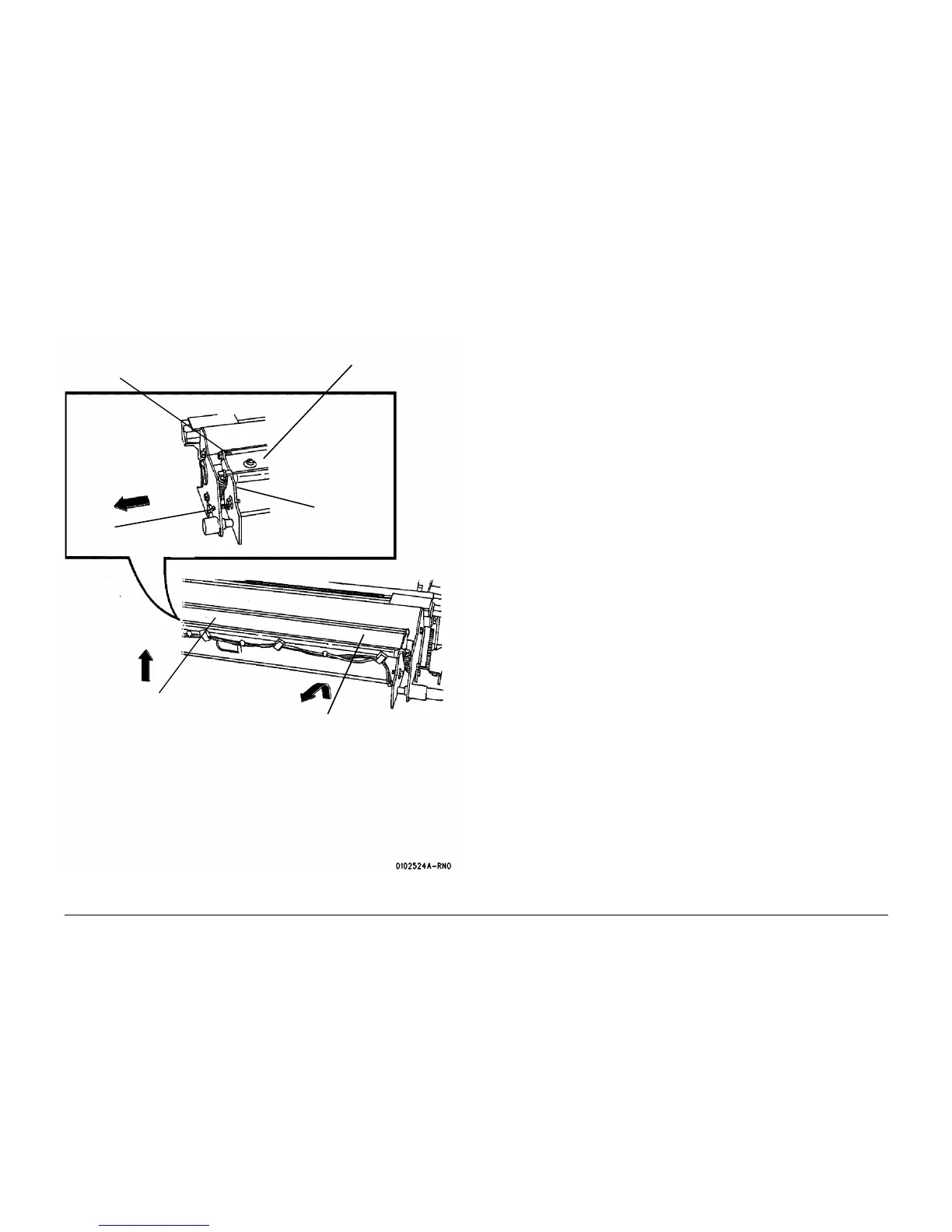

Figure 2 Removing the Baffle
1
Remove the two
springs (one
each end)
3
Remove the screws (5)
2
Remove the two
screws (one each end)
4
Rotate the screw until it is
free of the slot
5
Remove the Baffle
6
Rotate the Assembly
