01/02
2-13
8825/8830 Printer
LL-91 Undertoned Fault RAP
Status Indicator RAPs

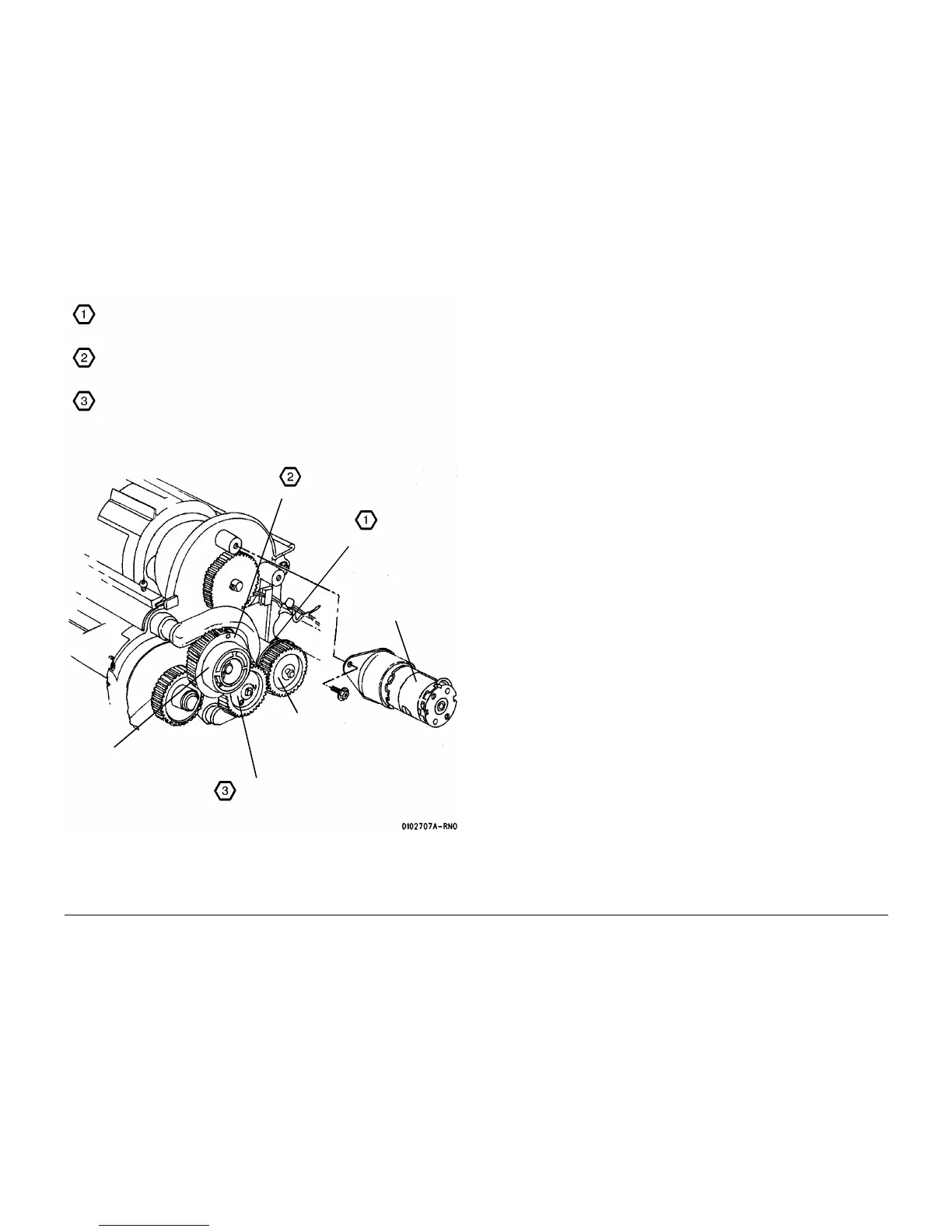

Figure 2 Developer Housing and Auger Drive Gears
Ensure that the Rear Auger Drive Gear is positioned with the flange as shown.
Ensure that the Developer Housing Drive Gear is positioned with the flange as
shown.
Ensure that the Front Auger Drive Gear is captured in position by the Rear Auger
Drive Gear Flange and the Developer Housing Drive Gear flange.
Developer
Housing Drive
Gear
Flange
Flange
Cartridge Drive
Motor removed
for clarity
Rear Auger
Drive Gear
Front Auger Drive Gear
To Next Page
