A-22 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Reference
TONER MOTOR Y ON
TONER MOTOR M ON
TONER MOTOR C ON
TONER MOTOR K ON
Example: Yellow Toner Motor
1. Power on the printer, and start the CE Diag
Too l.

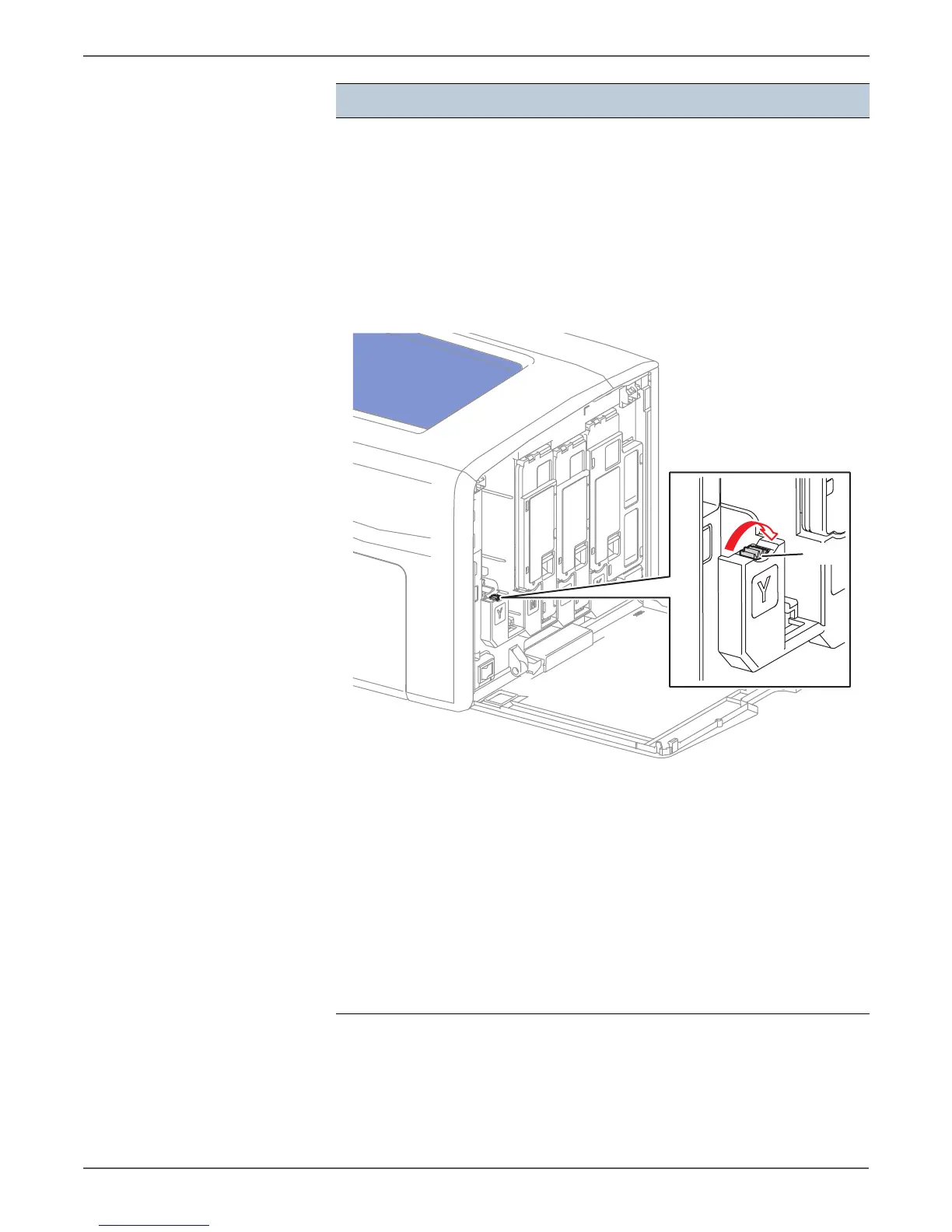

2. Open the Toner Access Cover.
3. Remove the Y Toner Cartridge.
4. Select the TONER MOTOR Y ON test, and
click the OK button.
5. Check that the Gear rotates.
6. Click the Stop button to stop the test.
Test example:
[14:14]
Digital Output Mode = ENTRY
[14:14]
TONER MOTOR Y ON = ON
STARTED = TONER MOTOR Y ON
[14:15]
Digital Output Mode = EXIT
NOTE The check procedure for TONER MOTOR M ON,
TONER MOTOR C ON, and TONER MOTOR K ON
are the same as that for TONER MOTOR Y ON.
Test Procedure
To Next Page
