Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only A-23
Reference
REGI CLUTCH ON The Registration Roller rotates when the
MAIN MOTOR ON FULL and the REGI
CLUTCH ON tests are executed at the same
time.
1. Power on the printer, and start up the CE
Diag Tool.
2. Open the Rear Door.
3. Cheat the Safety Interlock System.
4. Select the MAIN MOTOR ON FULL and
REGI CLUTCH ON test, and click the OK
button.
5. Check that the Registration Roller rotates.
6. Click the Stop button to stop the test.
Test example:
[14:14]
Digital Output Mode = ENTRY
[14:14]
MAIN MOTOR ON FULL = ON
STARTED = MAIN MOTOR ON FULL, REGI
CLUTCH ON
[14:14]
REGI CLUTCH ON = ON
STARTED = MAIN MOTOR ON, REGI CLUTCH
ON
[14:15]
Digital Output Mode = EXIT
Test Procedure

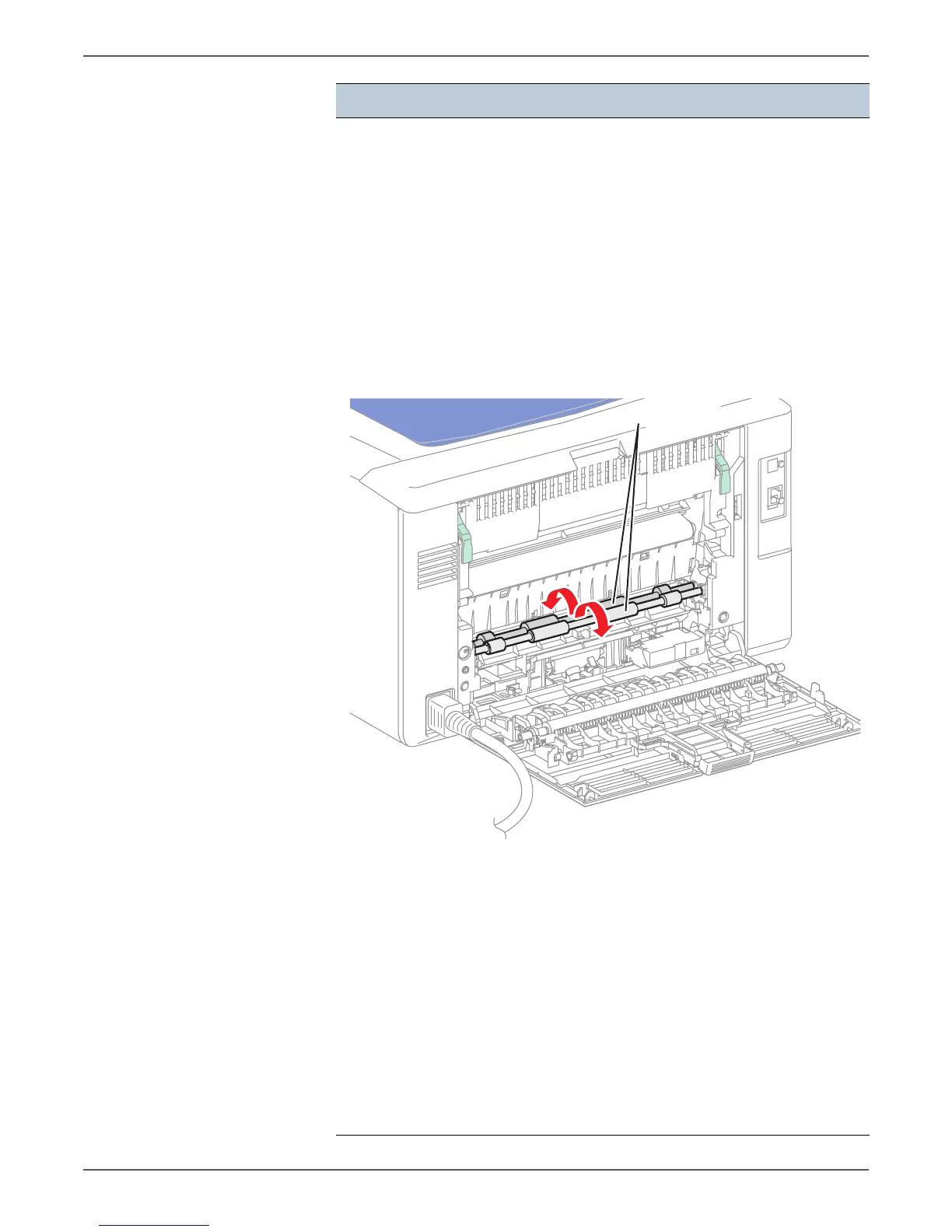

Registration Roller
s6000-149
