Chapter 4. Basic operation for input channels
45
PAIR
PAIR
PAIR
PAIR
EQ ON
EQUALIZER
STEREO
GAIN ATTENUATOR
DCA
SAFE
CHANNEL SELECT
MIX
CHFLIP
DEC INC
ON
SHIFT

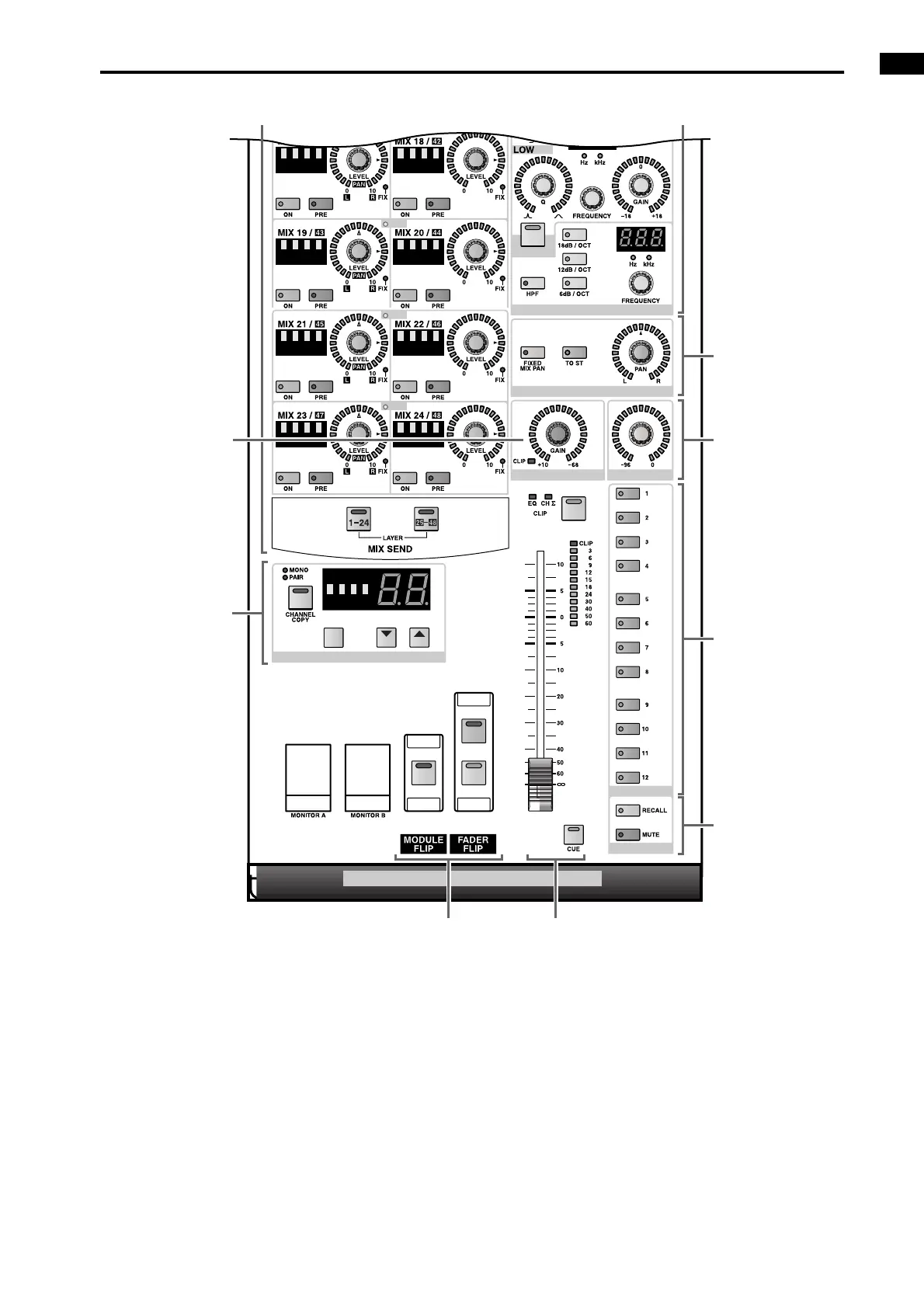

SELECTED INPUT CHANNEL
PHONESPHONES
CHANNEL SELECT
section
Select/view the channel
that will be controlled by
the SELECTED INPUT
CHANNEL block.
GLOBAL CONTROL section
Exchange (flip) faders and modules.
GAIN section
Adjust the input sensitivity
of the head amp for chan-
nels to which a mic/line
input card (LMY2-ML) has
been patched.
FADER section
Switch the currently selected channel on/off and adjust
its input level.
SAFE section
Temporarily exclude the
currently selected chan-
nel from scene recall
operations or mute
group operations.
ATTENUATOR
Attenuate the level of
the pre-EQ signal.
STEREO section
Switch the signal sent
from the currently
selected channel to the
STEREO bus on/off
and adjust its panning.
DCA section
Assign the currently
selected channel to the
desired DCA group(s).
