Chapter 5. Basic operation for output channels
67
■ MIX OUTPUT block
If MIX channels are paired, the left (odd-numbered) encoder will function as a [BAL] encoder to set the volume bal-
ance between the two MIX channels, and the right (even-numbered) encoder will function as a [LEVEL] encoder for
both MIX channels.
The operation of other adjacent odd-numbered → even-numbered switches will also be linked.

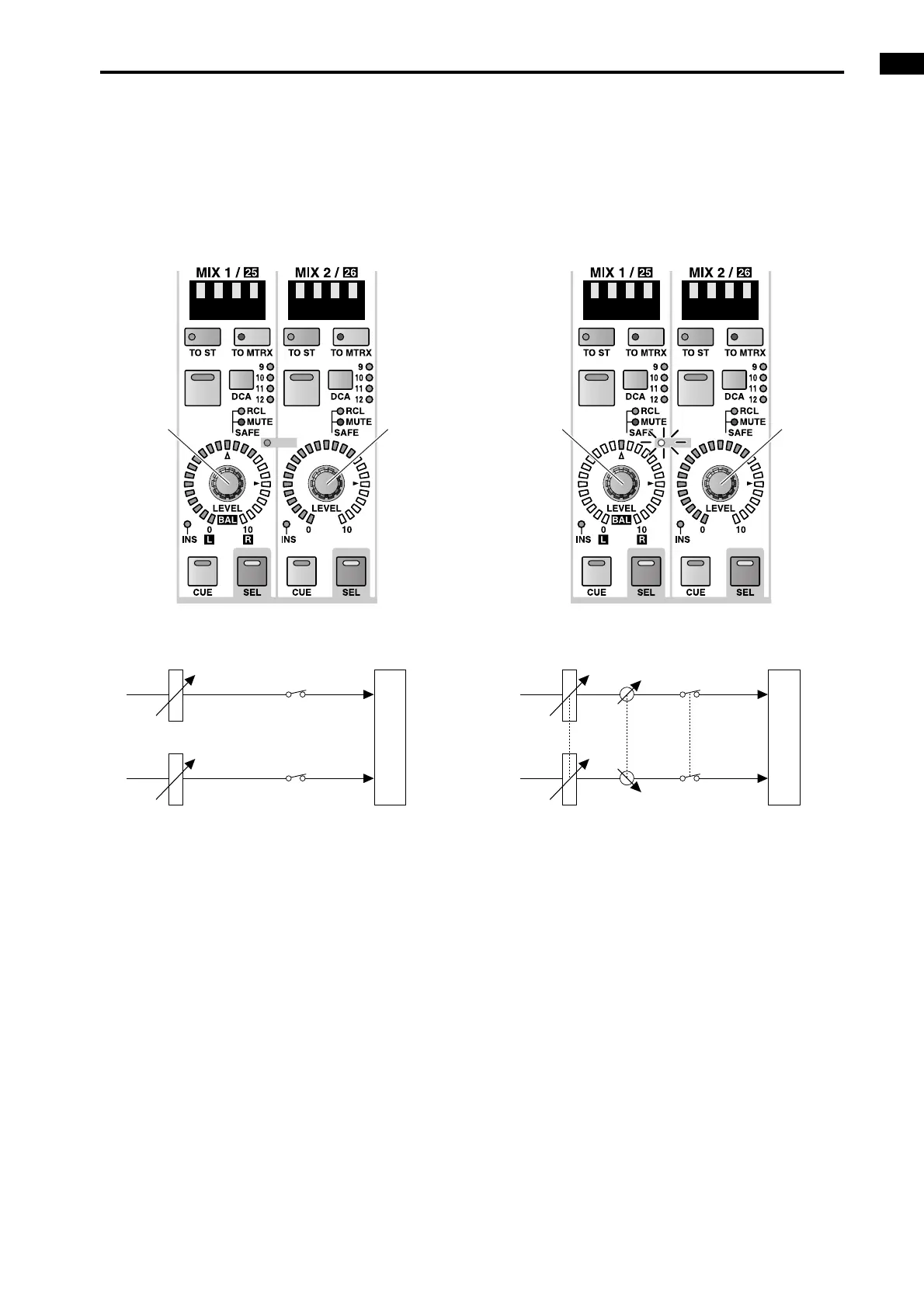

• When MIX channels are not paired • When MIX channels are paired
PAIR
ON ON
OUTPUT LEVEL
OUTPUT LEVEL
OUTPUT PATCH
MIX CHANNEL
ON
ON
MIX 1
MIX 2
MIX 1
OUTPUT
LEVEL
MIX 2
OUTPUT
LEVEL
PAIR
ON ON
OUTPUT LEVEL BALANCE
OUTPUT PATCH
MIX CHANNEL
ON
MIX 1
MIX 2
MIX 1/2
BALANCE
MIX 1/2
OUTPUT
LEVEL
