OUT INSERT (output insert) function
87
OUT PATCHOUT INSERTOUT EQOUT COMPOUT DELAY
OUT DCA/MUTE
MATRIX/STOUT CH VIEW
[Screen functions]

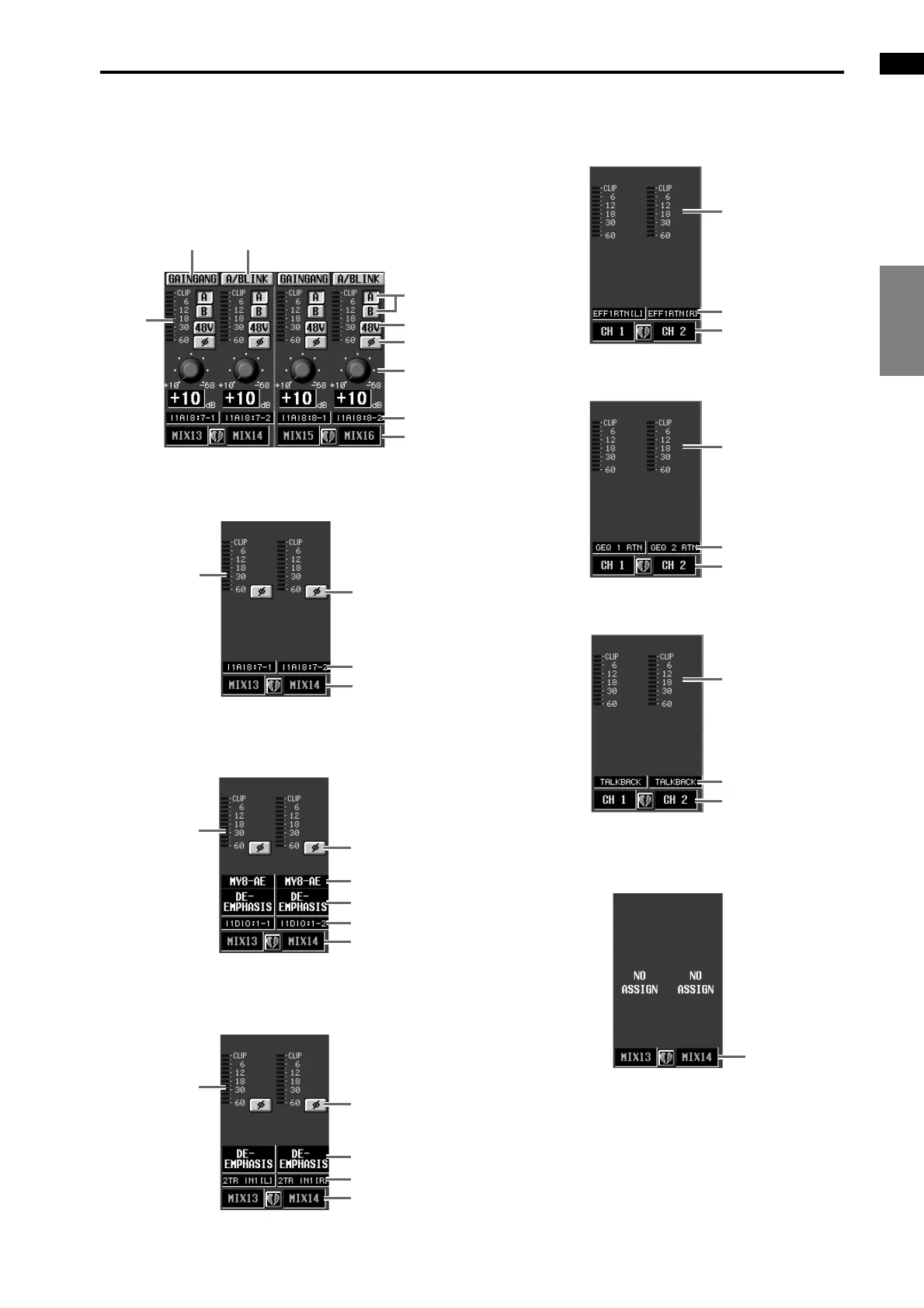

The OUT INSERT function screen displays the state of
the parameter settings according to the type of unit or
card that is assigned to the output channel.
For an AD card with head amp (LMY2-ML)
For an AD card without head amp (LMY4-AD)
For a digital I/O card (MY card)
For a 2TR IN is assigned
For an effect return, graphic EQ output, or talkback
signal is assigned
For a channel to which nothing is assigned
1 GAIN GANG
This button links the head amp gain setting between
adjacent channels in the screen. (The offset value will
be preserved.) When this button is on, rotating the
GAIN knob (7) of one channel will cause the knob
of the other channel to follow, while preserving the
current level difference.
3
1 2
4
5
6
7
8
9
3
6
8
9
3
6
0
A
8
9
3
6
8
A
9
8
9
3
(Meter)
8
9
3
(Meter)
8
9
3
(Meter)
9
