MATRIX/ST (matrix/stereo) function
113
OUT PATCHOUT INSERTOUT EQOUT COMPOUT DELAY
OUT DCA/MUTE
MATRIX/STOUT CH VIEW

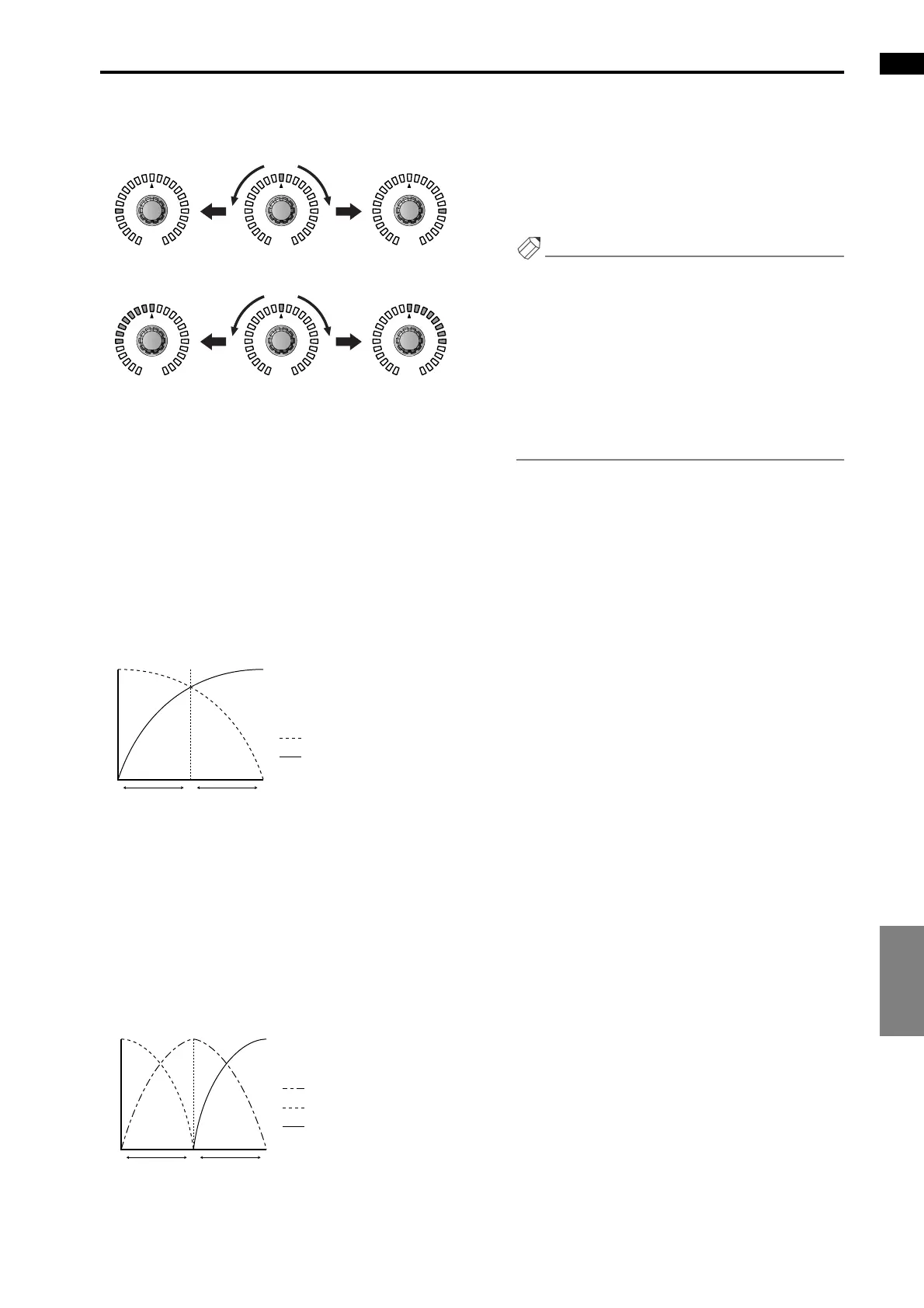

LED lighting
• When LCR=off
• When LCR=on
3 CSR (center side ratio)
Adjust the level ratio of the CENTER channel relative
to the L/R channels. The range is 0.0–1.0.
If CSR is set to 0:0, rotating the PAN knob in the
MIX TO STEREO section of the MATRIX/ST
ROUTING screen will cause the signal levels of the
L/R channels to change as shown in LCR response
curve 1, below.
In this case, the MIX TO STEREO PAN will function
as a conventional PAN control, and no signal will be
sent to the CENTER channel.
LCR response curve 1
If CSR is set to 1.0, rotating the PAN knob in the
MIX TO STEREO section of the MATRIX/ST
ROUTING screen will cause the signal levels sent to
the L/R channels and the CENTER channel to
change as shown in LCR response curve 2, below.
When the PAN knob in the MIX TO STEREO sec-
tion is in the center location, the signal level of the
CENTER channel will be maximum, and no signal
will be sent to the L/R channels.
LCR response curve 2
4 Pairing
This shows the number and pairing status of the
MIX channel.
You can also click the heart symbol to set/defeat pair-
ing. Parameters 2–3 will be linked for paired chan-
nels.
Hint
The master level of the CENTER channel is con-
trolled by the fader of the STEREO B block on the
CS1D. If necessary, you can also use the internal EQ
or compressor of the STEREO B channel to process
the signal.
One of the output jacks patched to the STEREO B
channel will be used as the output jack for the CEN-
TER channel. (If the CENTER BUS CONTROL but-
ton is on, the same signal will be output to the L/R
channels of STEREO B.)
RLRL RL
RLRL RL
CRL
Signal sent to the L channel
Signal sent to the R channel
[PAN] encoder
Signal level
CRL
Signal sent to the C channe
l
Signal sent to the L channel
[PAN] encoder
Signal level
Signal sent to the R channe
l
