2.8 Removing/Reattaching Covers
52 YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual

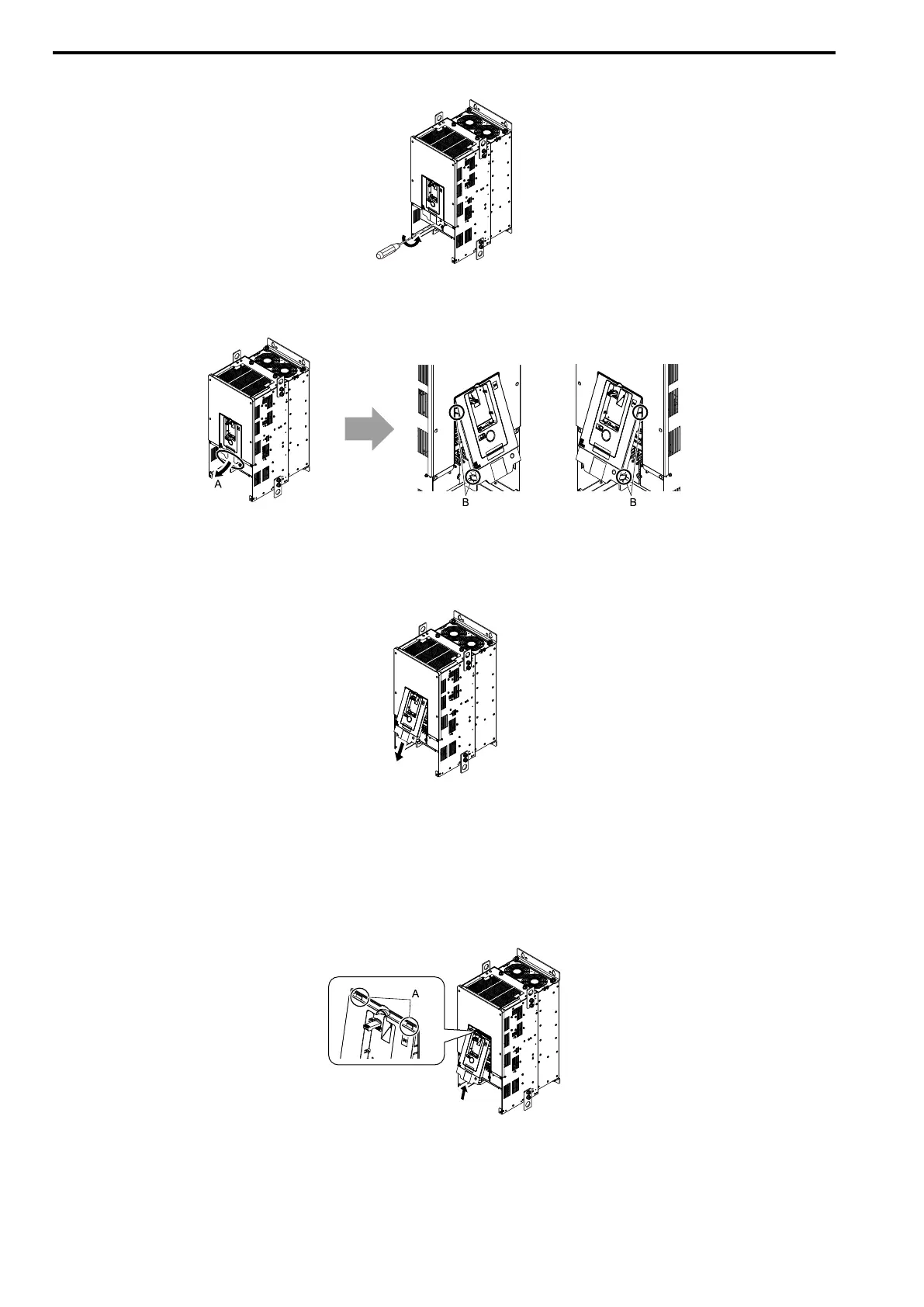

2. Loosen the front cover screws.
Figure 2.25 Loosen the Front Cover Screws
3. Push on the four tabs found on each side of the front cover, then pull the front cover forward to remove it
from the drive.
A - Pull forward to remove the front
cover.
B - Unhook the tabs found on the
sides of the front cover.
Figure 2.26 Pull Forward to Remove the Front Cover
4. Remove the front cover from the drive.
Figure 2.27 Remove the Front Cover
■ Reattach the Front Cover
Wire the drive and other peripheral devices then reattach the front cover.
Note:
Wire the grounding terminals first, main circuit terminals next, and control circuit terminals last.
1. Move the front cover to connect the hooks at the top of the front cover to the drive.
A - Hooks
Figure 2.28 Reattach the Front Cover
