Mechanical & Electrical
Installation
2
2.8 Removing/Reattaching Covers
YASKAWA ELECTRIC SIEP C710617 05F YASKAWA AC Drive GA700 Technical Manual 53
2. Move the front cover until it clicks into position while pushing on the hooks on the left and right sides of the
front cover.
Note:
Make sure that you do not pinch wires or signal lines between the front cover and the drive before you reattach the cover.

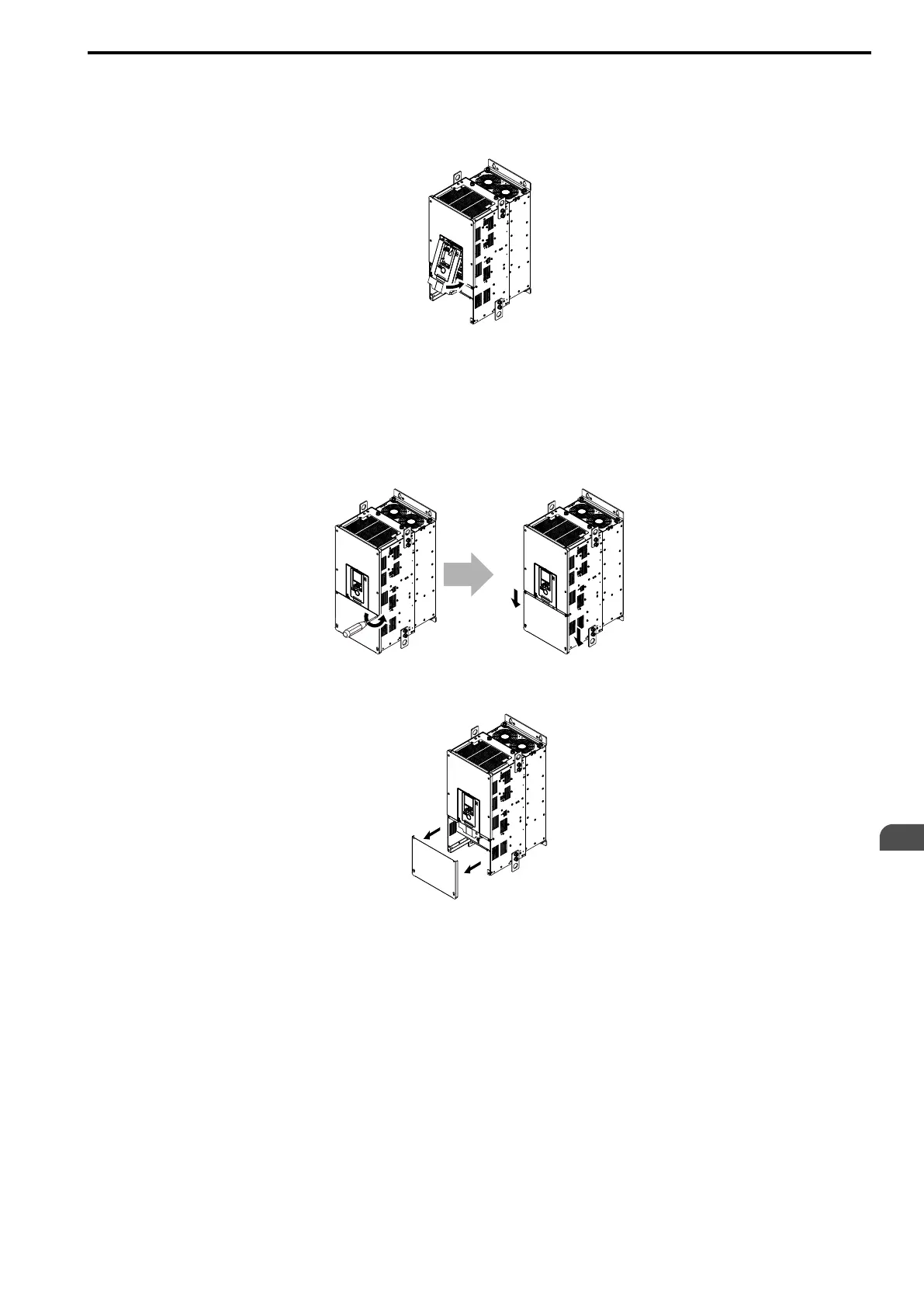

Figure 2.29 Reattach the Front Cover
3. Reattach the keypad to the original position.
■ Remove the Terminal Cover
1. Loosen the screws on the terminal cover, then pull down on the cover.
CAUTION! Crush Hazard. Only loosen the cover screws. Do not fully remove the cover screws. Make sure that the
terminal covers for larger drives do not fall. Missing cover screws can cause the terminal cover to fall and cause injury.
Figure 2.30 Loosen the Terminal Cover Mounting Screws
2. Pull the terminal cover away from the drive.
Figure 2.31 Remove the Terminal Cover
■ Reattach the Terminal Cover
Wire the drive and other peripheral devices then reattach the terminal cover.
Note:
• Wire the grounding terminals first, main circuit terminals next, and control circuit terminals last.
• Make sure that you do not pinch wires or signal lines between the wiring cover and the drive before you reattach the cover.
• Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 lb.∙in. to 11.77 lb.∙in.).
To Next Page
