Zebra ZM400 Series User Manual

Troubleshooting
Printer Diagnostics
120
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
FEED Self Test
Different types of media may require different darkness settings. This section contains a
simple but effective method for determining the ideal darkness for printing bar codes that are
within specifications.
During the FEED self test, labels are printed at different darkness settings at two different print
speeds. The relative darkness and the print speed are printed on each label. The bar codes on
these labels may be ANSI-graded to check print quality.
The darkness value starts at three settings lower than the printer’s current darkness value
(relative darkness of –3) and increase until the darkness is three settings higher than the current
darkness value (relative darkness of +3).
Depending on the dot density of the printhead, seven labels are printed at each of the following
speeds:
• 203 dpi printers: 2 ips, 6 ips, and 10 ips
• 300 dpi printers: 2 ips, 6 ips, 8 ips
• 600 dpi printers: 2 ips, 4 ips
To perform a FEED self test, complete these steps:
1. Print a configuration label to show the printer’s current settings.
2. Turn off (O) the printer.
3. Press and hold FEED while turning on (I) the printer. Hold FEED until the first control
panel light turns off.
The printer prints a series of labels (Figure 18) at various speeds and at darkness settings
higher and lower than the darkness value shown on the configuration label.

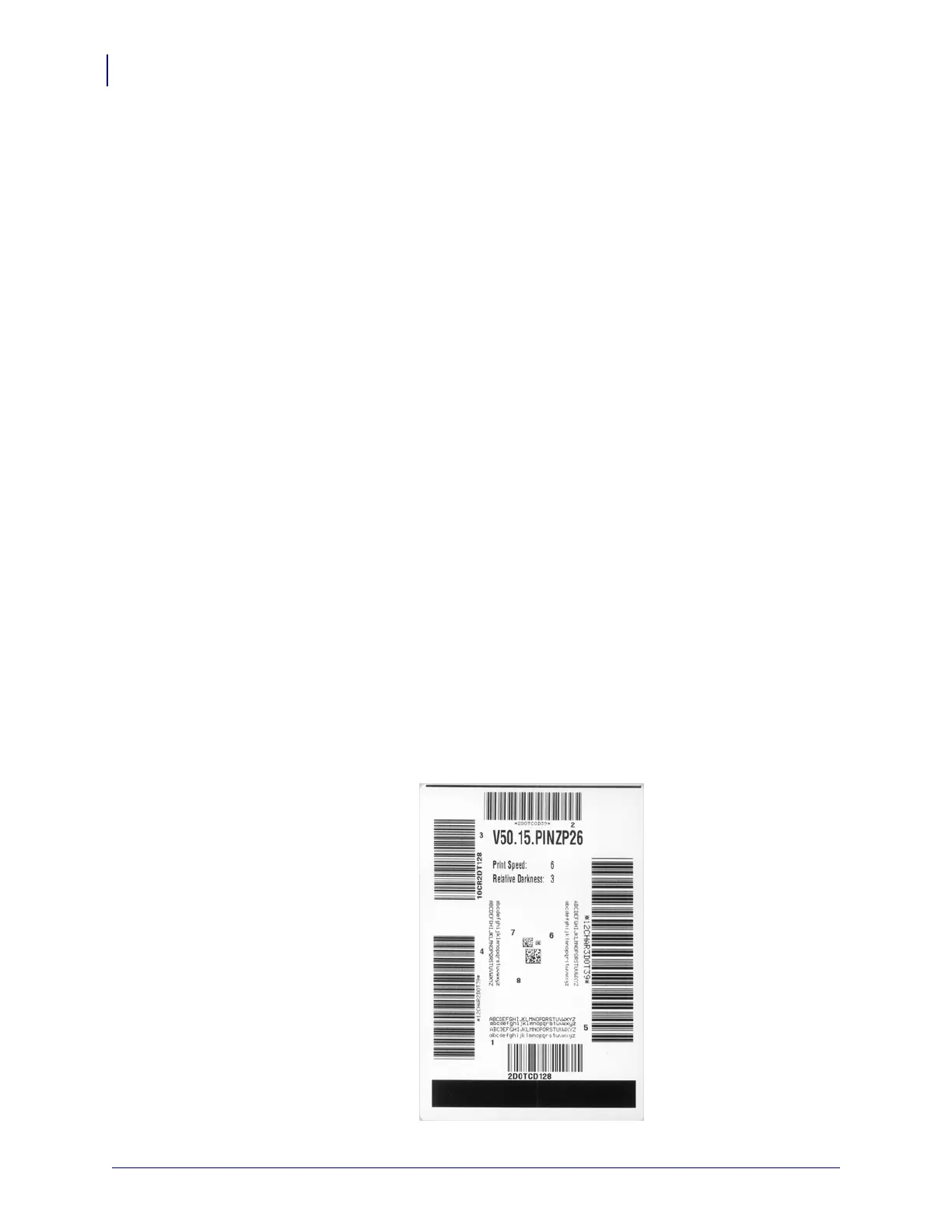

Figure 18 • FEED Test Label

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
