Corrective Maintenance
Printhead Pressure Dials
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
6. See Figure 74. Remove and discard the dials and springs from the print mechanism.

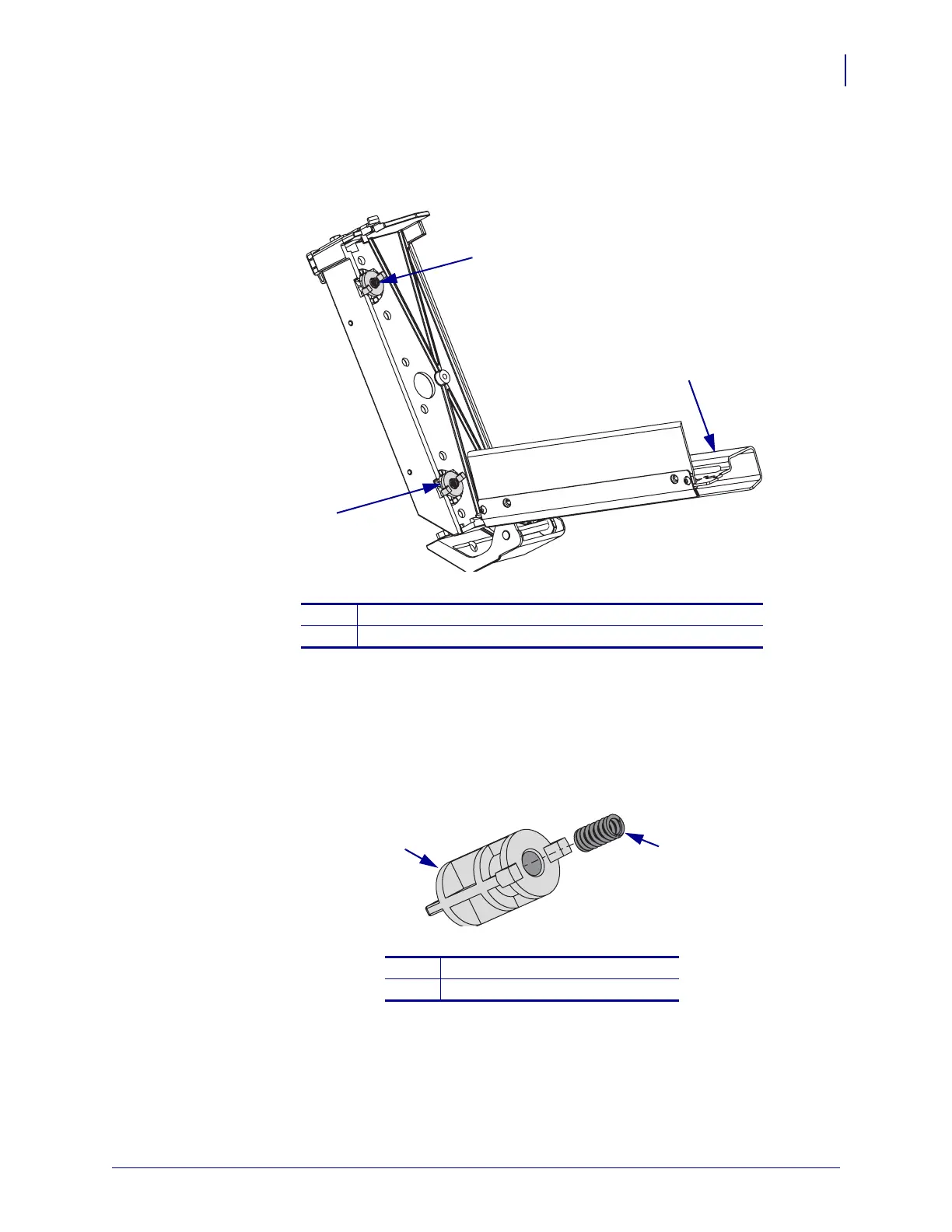

Figure 74 • Remove the Pressure Dials
Install the New Pressure Dials
1. See Figure 75. Install the new springs in to the new dials.
Figure 75 • Install the Springs
2. See Figure 74 on page 203. Insert the new dials and springs into the print mechanism.
3. See Figure 73 on page 202. Reinstall the pressure bracket and roller, and then remove the
masking tape.
4. Reinstall the stabilizer by inserting it into the print mechanism until it stops.
1
Pressure dial and spring
2
Pressure bracket
1
1
2
1
Pressure dial
2
Spring
1
2

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
