Zebra ZM400 Series

Corrective Maintenance
Printhead Conversion
292
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Reinstall the Electronics Cover
1. See Figure 157. Install the electronics cover by aligning it and sliding down, ensuring the
lower flanges are inside the base and the upper flanges are between the main frame and the
media door.

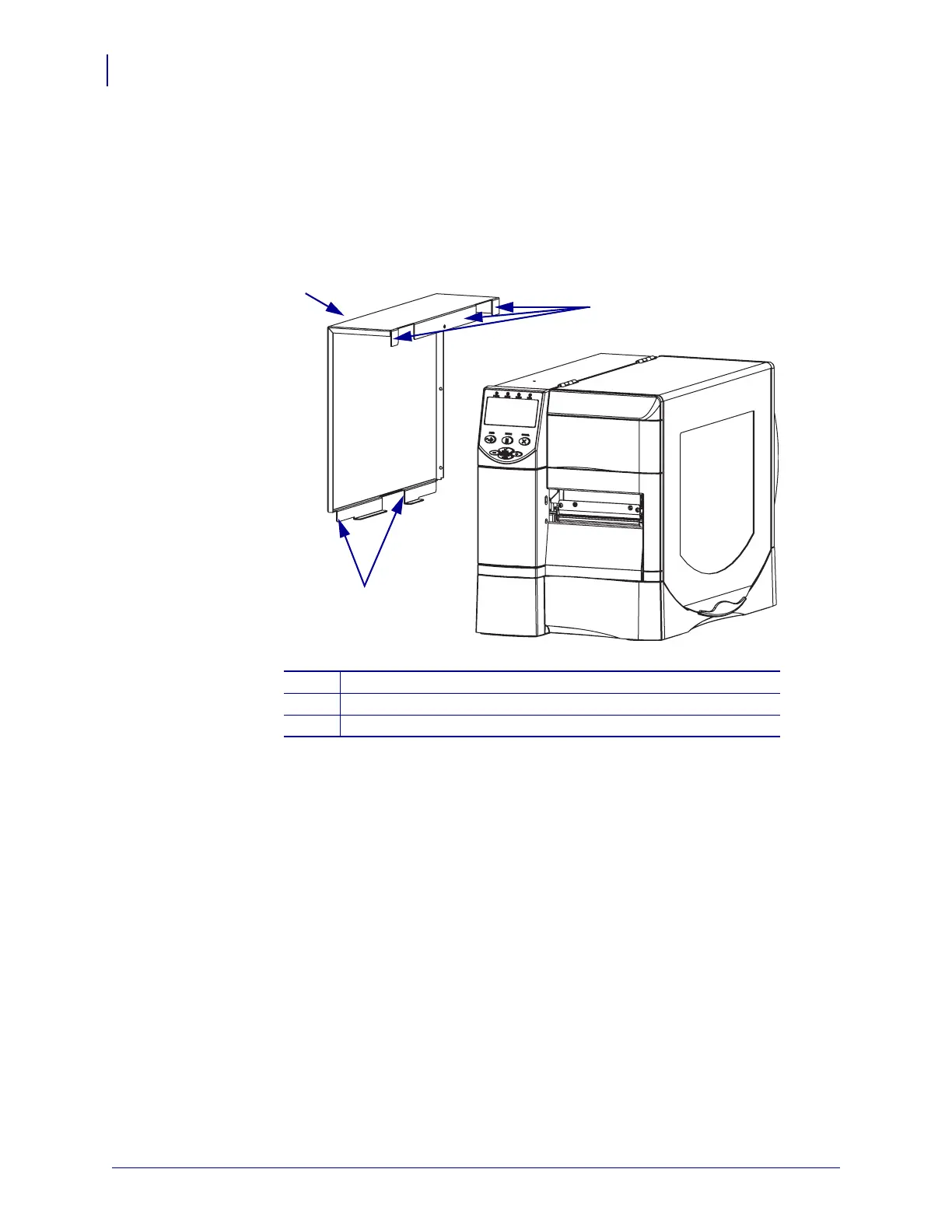

Figure 157 • Locate the Upper and Lower Flanges
2. See Figure 148 on page 285. Install the four mounting screws.
3. See Figure 147 on page 284. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
1
Electronics cover
2
Upper flanges (3)
3
Lower flanges (2)
2
1
3
