Zebra ZM400 Series User Manual

Corrective Maintenance
Peel Rewind Option
342
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Install the Rewind Pan
1. See Figure 204. Place the main frame onto the rewind pan assembly. Ensure the rear ledge
of the main frame rests completely on the rear support in the pan.

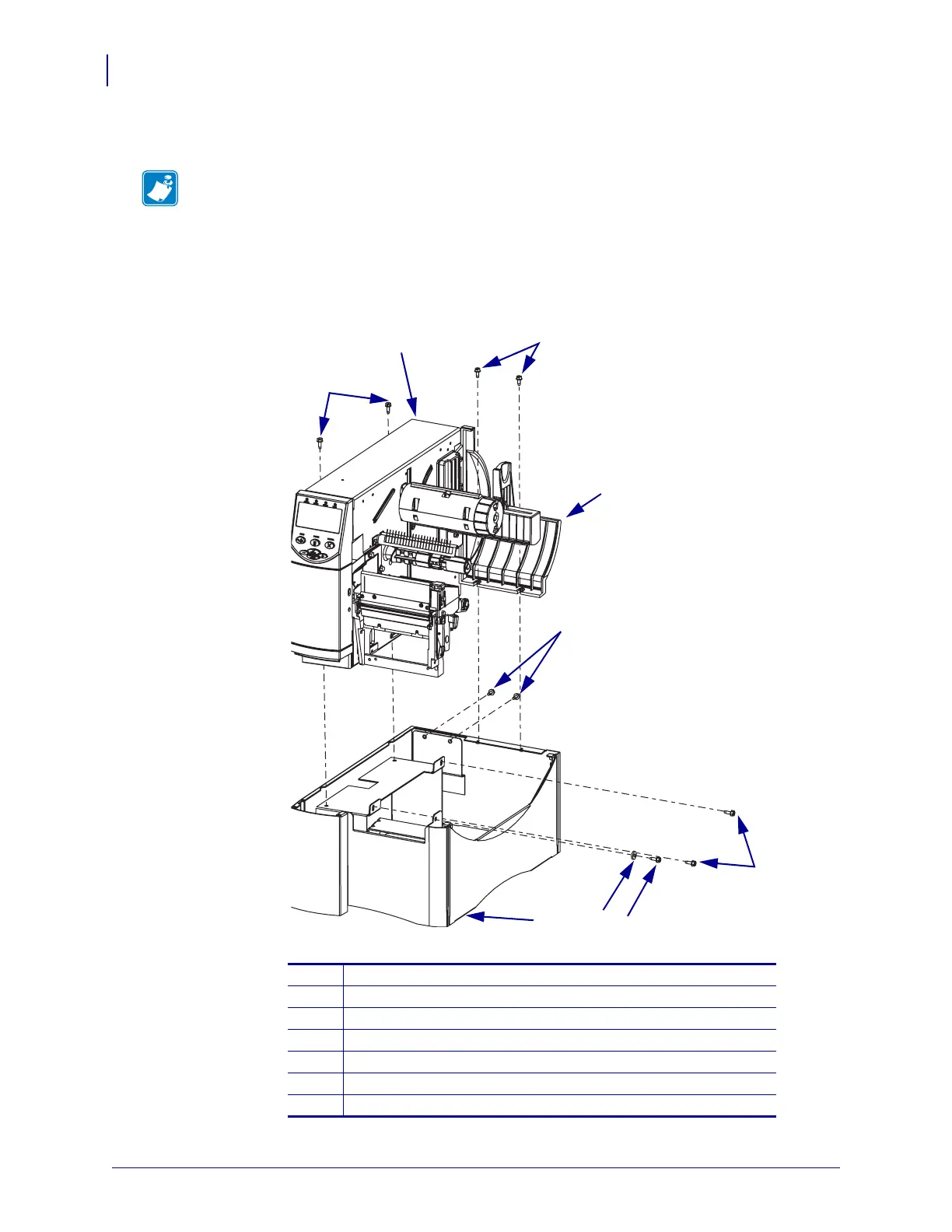

Figure 204 • Install the Rewind Pan
Important • Alignment is very important. The platen housing must be inside the mounting
tab of the rewind pan.
1
Main frame
2
Main frame mounting screws (4)
3
Rear end cap mounting screws (2)
4
Rear end cap
5
Platen housing mounting screw
6
Flat washer
7
Rewind Pan
1
2
3
4
7
2
2
5
6

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
