Zebra ZM400 Series User Manual

Corrective Maintenance
Main Logic Board
400
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Remove the Wired Ethernet Board
1. See Figure 257. Remove the three mounting nuts.

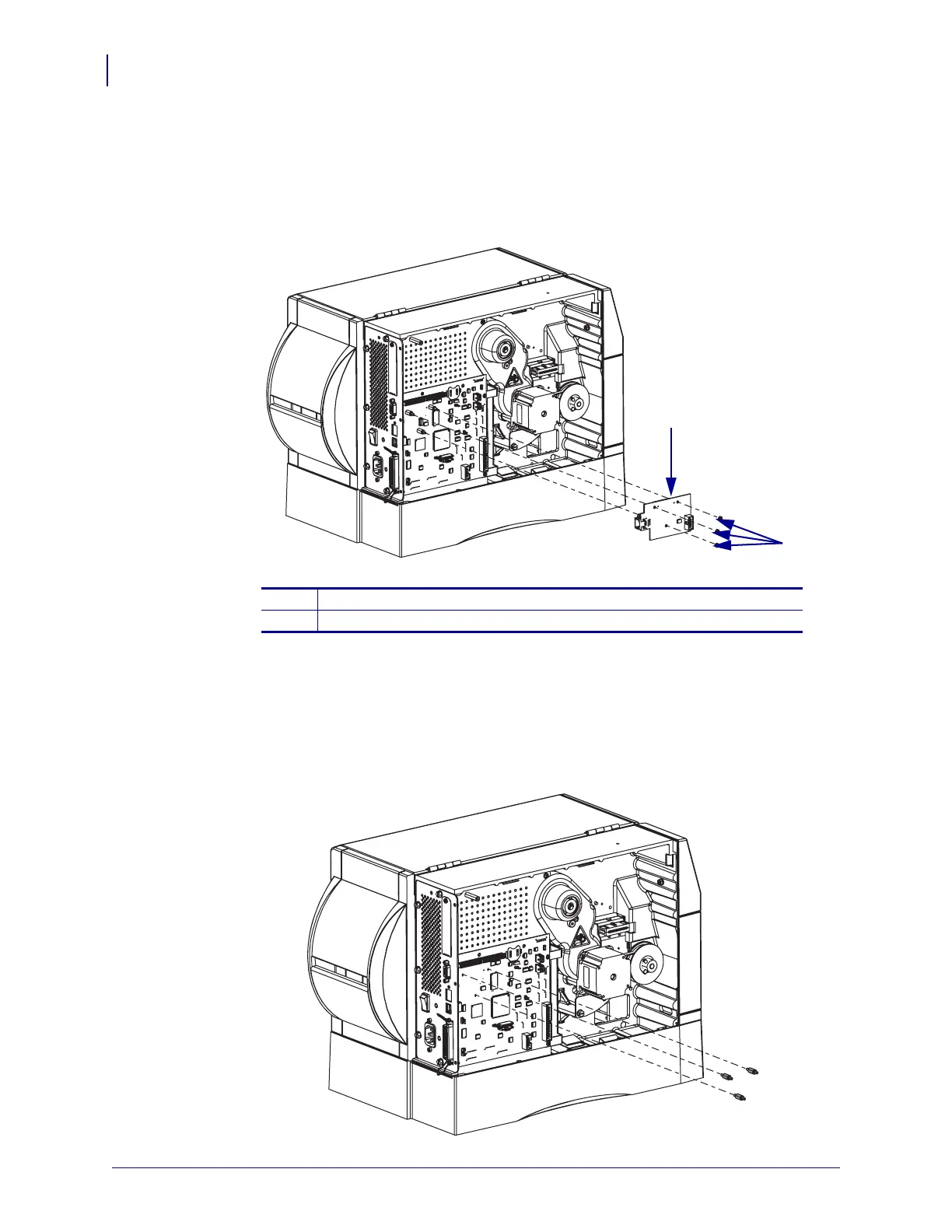

Figure 257 • Remove the Wired Ethernet Board
2. Slide the wired ethernet board off the three mount standoffs and set aside for
reinstallation.
3. See Figure 258. Remove the three standoffs from the MLB.
Figure 258 • Remove the Wired Ethernet Board Standoffs
1
Wired ethernet board
2
Mounting nuts (3)
1
2

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
