Zebra ZM400 Series User Manual

375
Corrective Maintenance
Platen Coupling
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Remove the Drive Shaft
1.

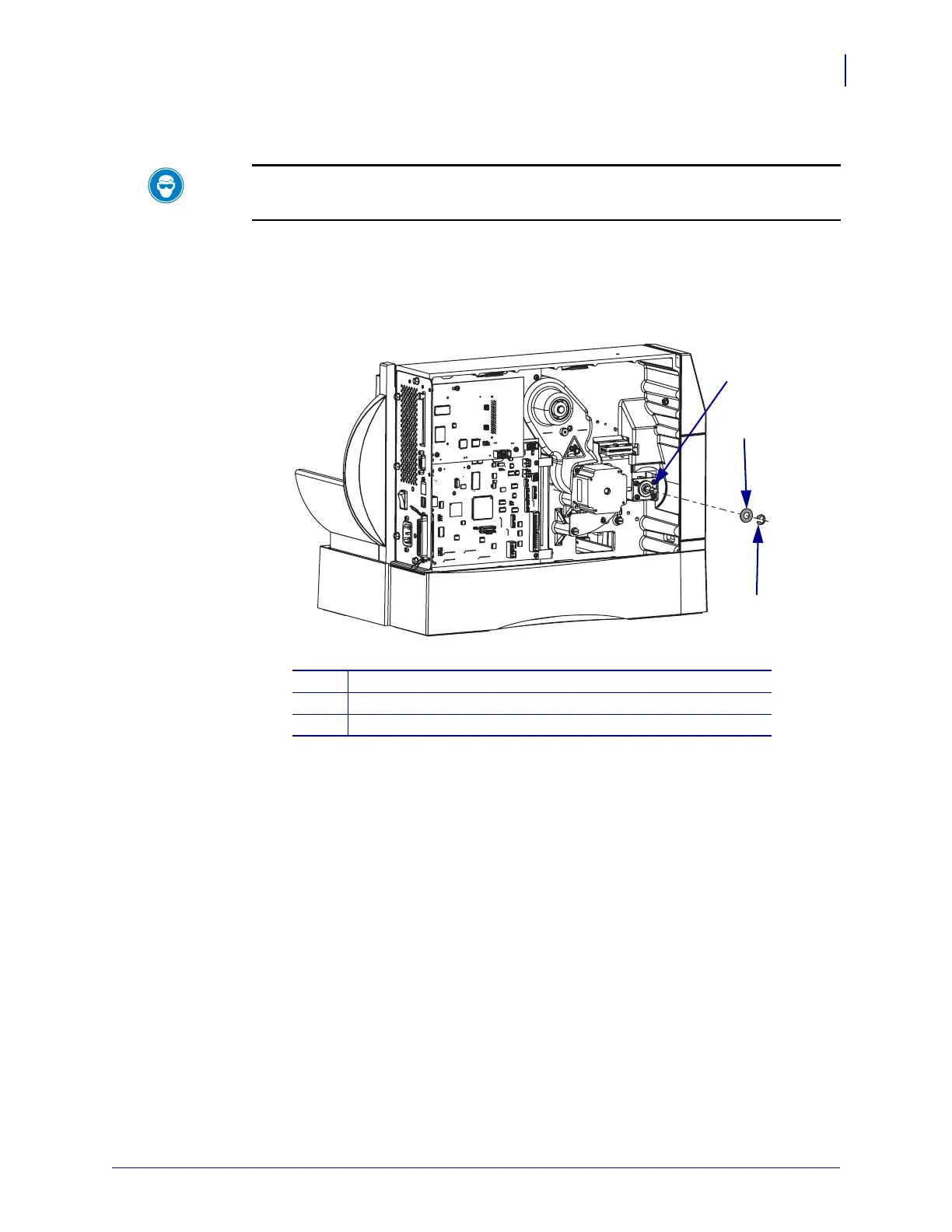

Figure 234 • Remove the E-ring and Washer
Caution • Wear protective eyewear when installing or removing E-rings, C-clips, snap
rings, springs, and mounting buttons. These are under tension and could fly off.
See Figure 234. Using a flat-blade screwdriver or needle nose pliers, remove and discard
the e-ring and washer from the drive shaft.
1
Drive shaft
2
Washer
3
E-ring
1
2
3

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
