Zebra ZM400 Series

Corrective Maintenance
Platen Coupling
374
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
5. See Figure 233. Slide the platen pulley from the coupling assembly and set it aside for
reuse.

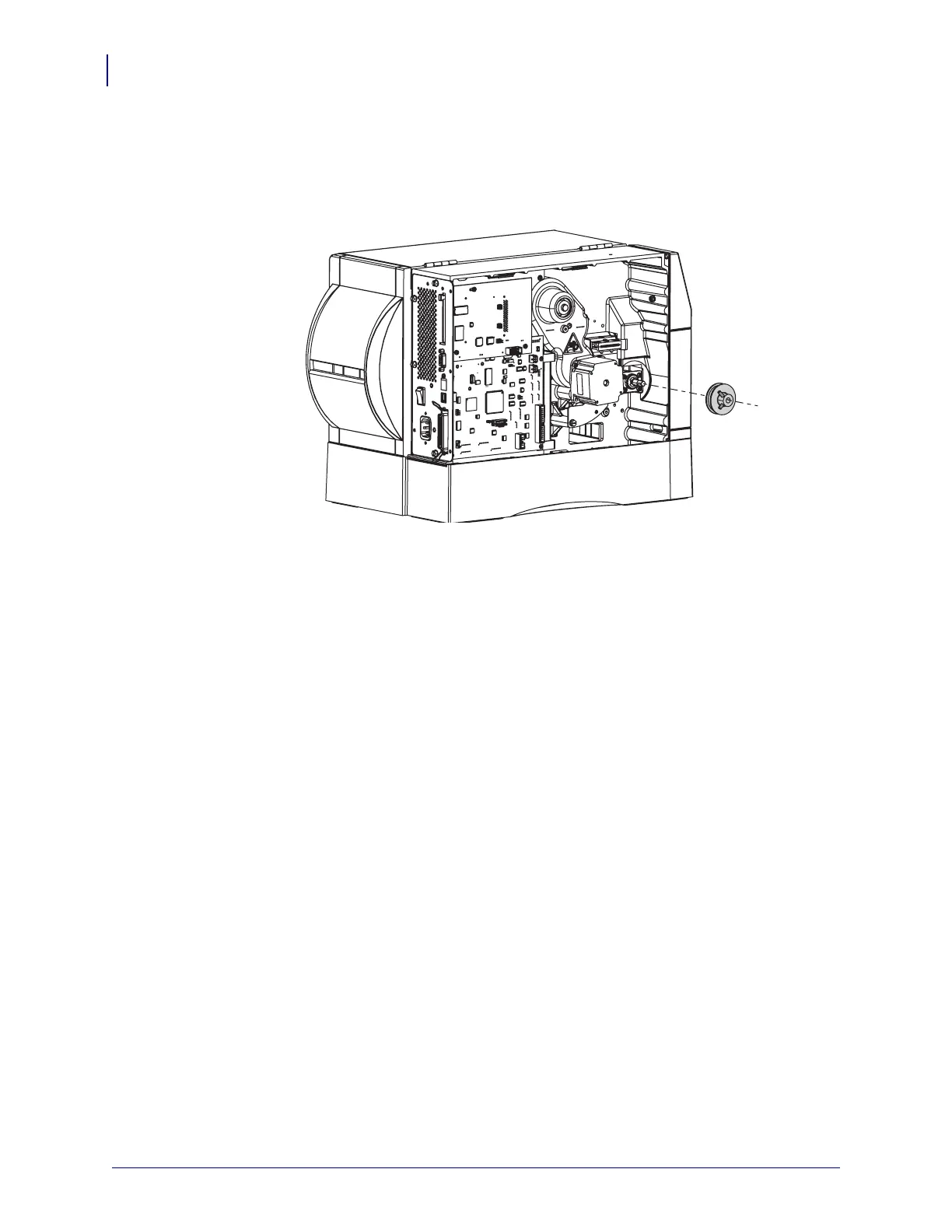

Figure 233 • Remove the Platen Pulley
