Preventive Maintenance
Routine Maintenance for the Rewind Option
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Routine Maintenance for the Rewind Option
When you use the Rewind option, you will periodically need to remove printed labels or used
liner from the rewind spindle. You may also need to adjust the media alignment for the Rewind
option.
Remove Printed Labels or Liner from the Rewind Spindle
To remove printed labels or liner from the rewind spindle, complete these
steps:

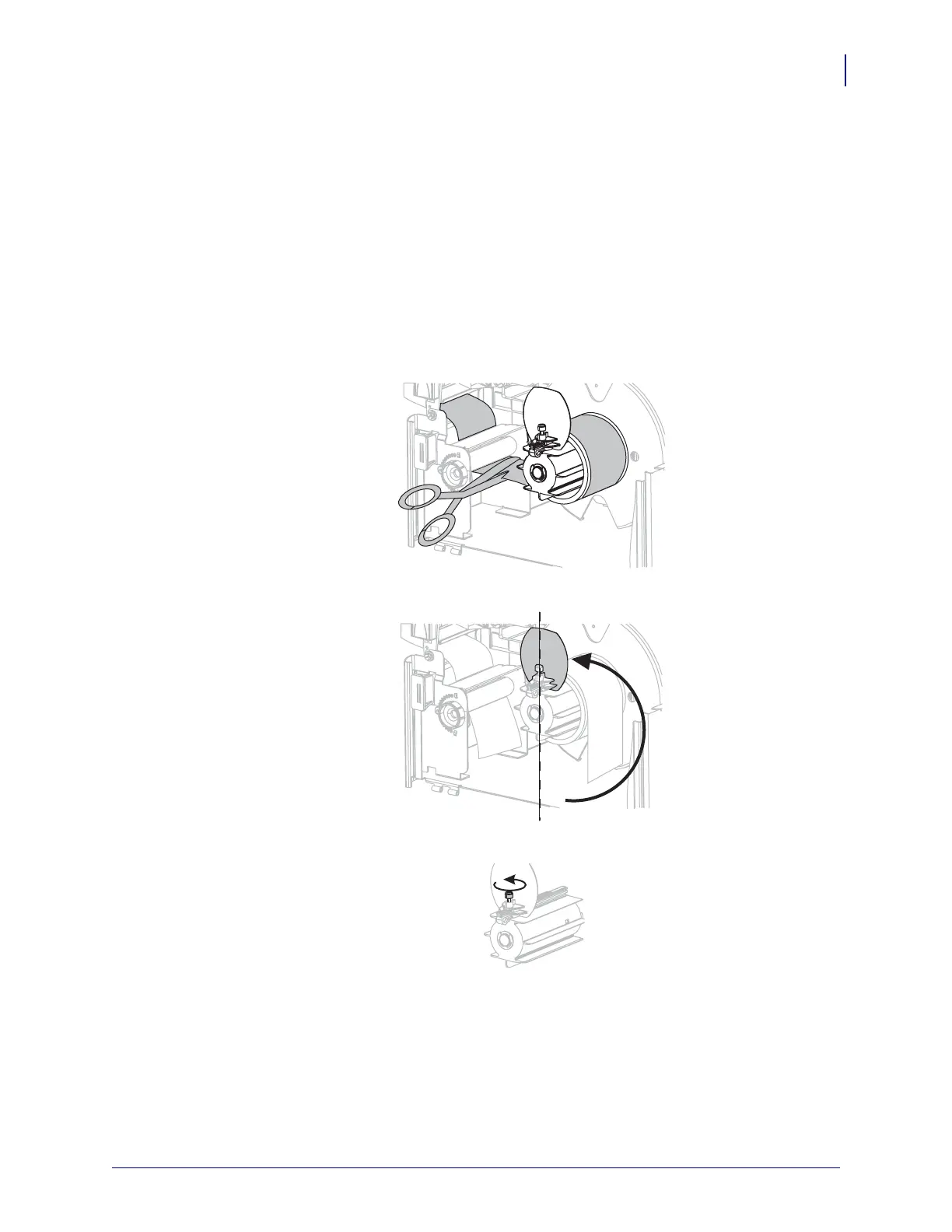

1. Cut the liner between the media alignment spindle and the rewind spindle.
2. Rotate the take-up spindle counterclockwise until the rewind media guide is fully upright.
3. Loosen the thumbscrew on the rewind media guide.

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
