Corrective Maintenance
Peel Rewind Option
348
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Install the Peel Assembly

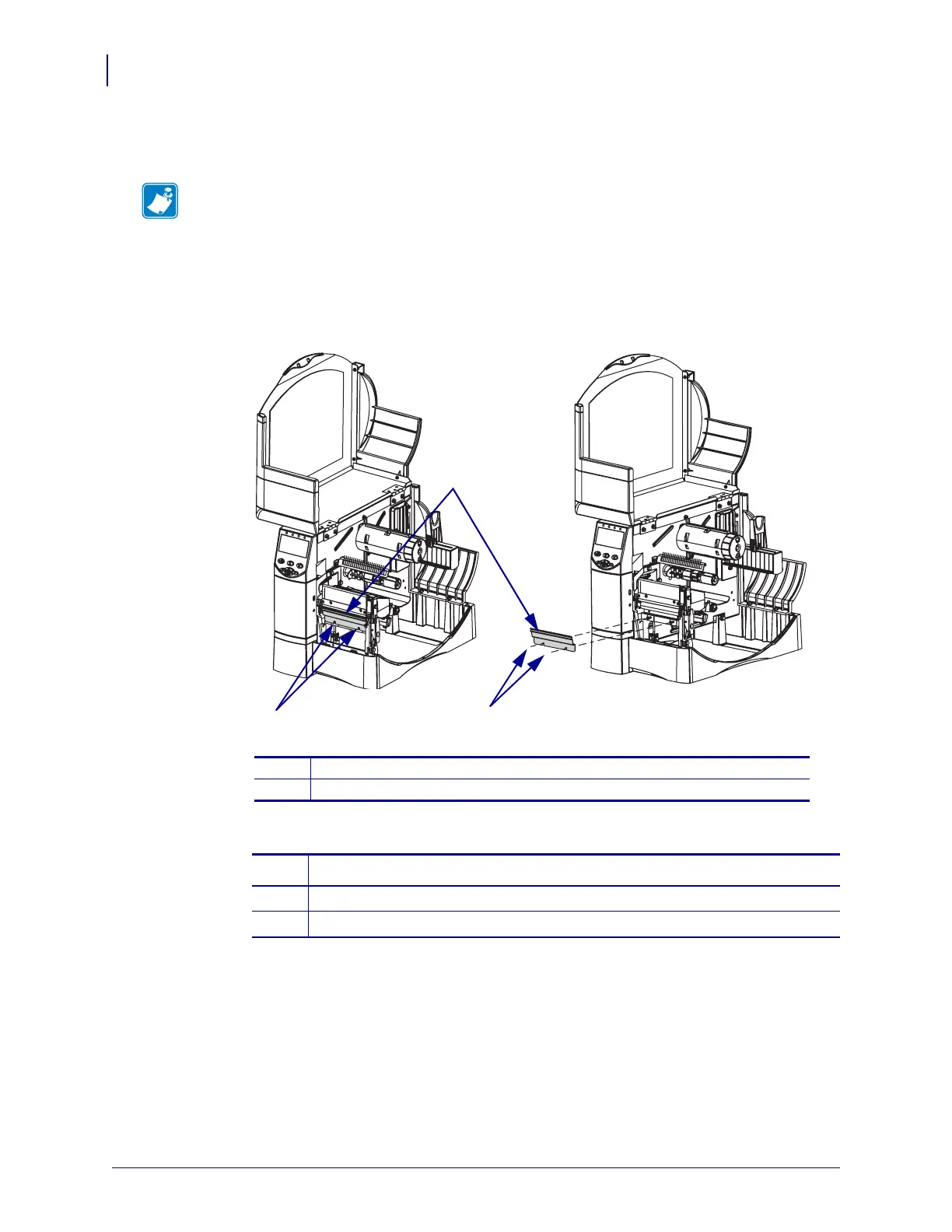

1. See Figure 209. Remove the two mounting screws and remove the tear bar.
Figure 209 • Remove the Tear Bar
2. Do you have an existing peel assembly?
Note • If there is an existing peel assembly, it must be removed. If a peel assembly in not
currently installed, the tear bar must be removed.
Retain all parts removed during disassembly, unless otherwise directed.
1
Tear bar
2
Mounting screws (2)
If… Then…
No Go to Install the New Peel Assembly on page 350.
Yes Continue with Remove the Existing Peel Assembly.
1
2
2

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
