251
Corrective Maintenance
Drive System
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Reinstall the Electronics Cover
1. See Figure 116. Install the electronics cover by aligning it and sliding down, ensuring the
lower flanges are inside the base and the upper flanges are between the main frame and the
media door.

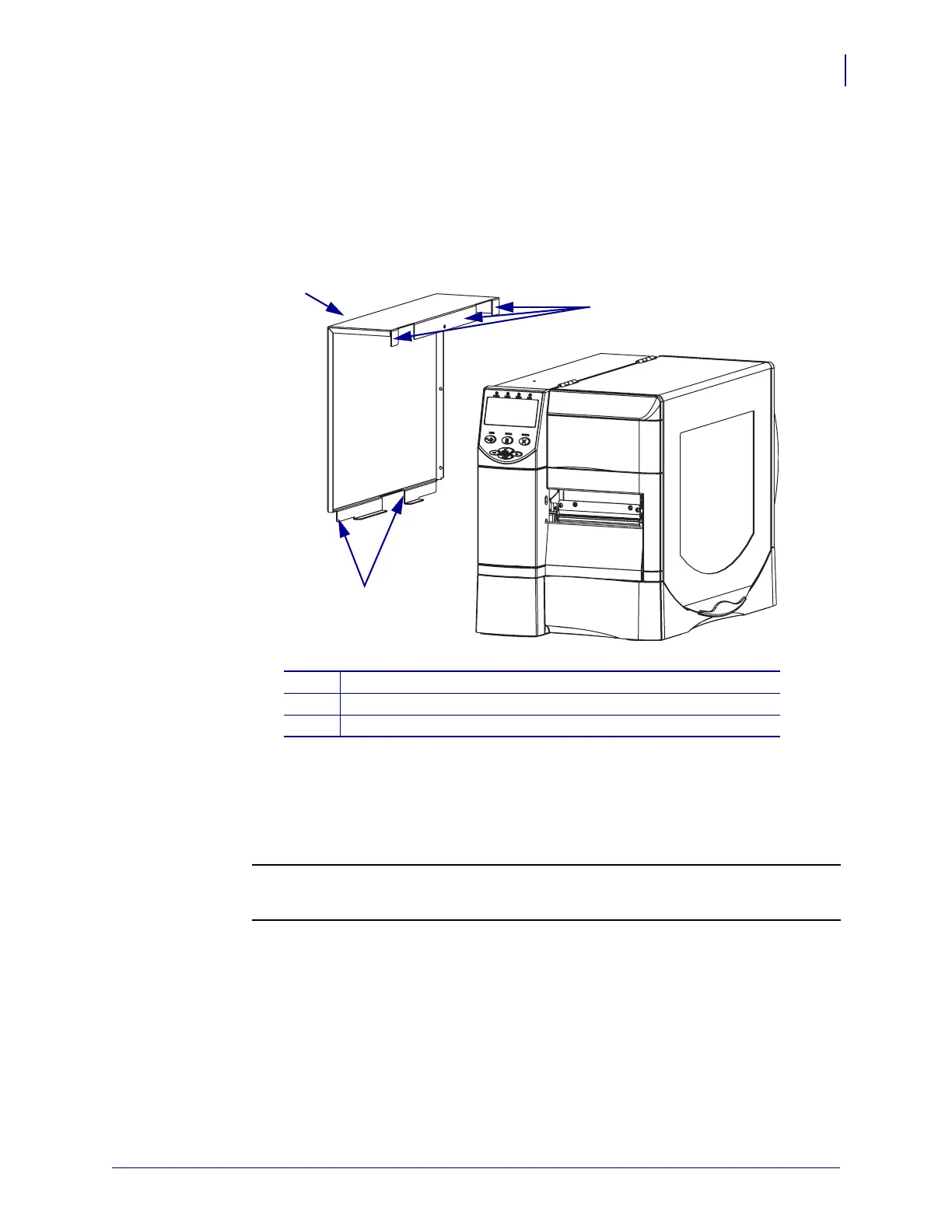

Figure 116 • Locate the Upper and Lower Flanges
2. See Figure 111 on page 246. Install the four mounting screws.
3. See Figure 110 on page 245. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
5.
6.
Reconnect the AC power cord and data cables.
1
Electronics cover
2
Upper flanges (3)
3
Lower flanges (2)
2
1
3
Caution • When you are loading media or ribbon, remove all jewelry that could come
into contact with the printhead or other printer parts.
Reinstall the media and ribbon.
