3. See Figure 110. Remove the screw and washer securing the electronics cover.

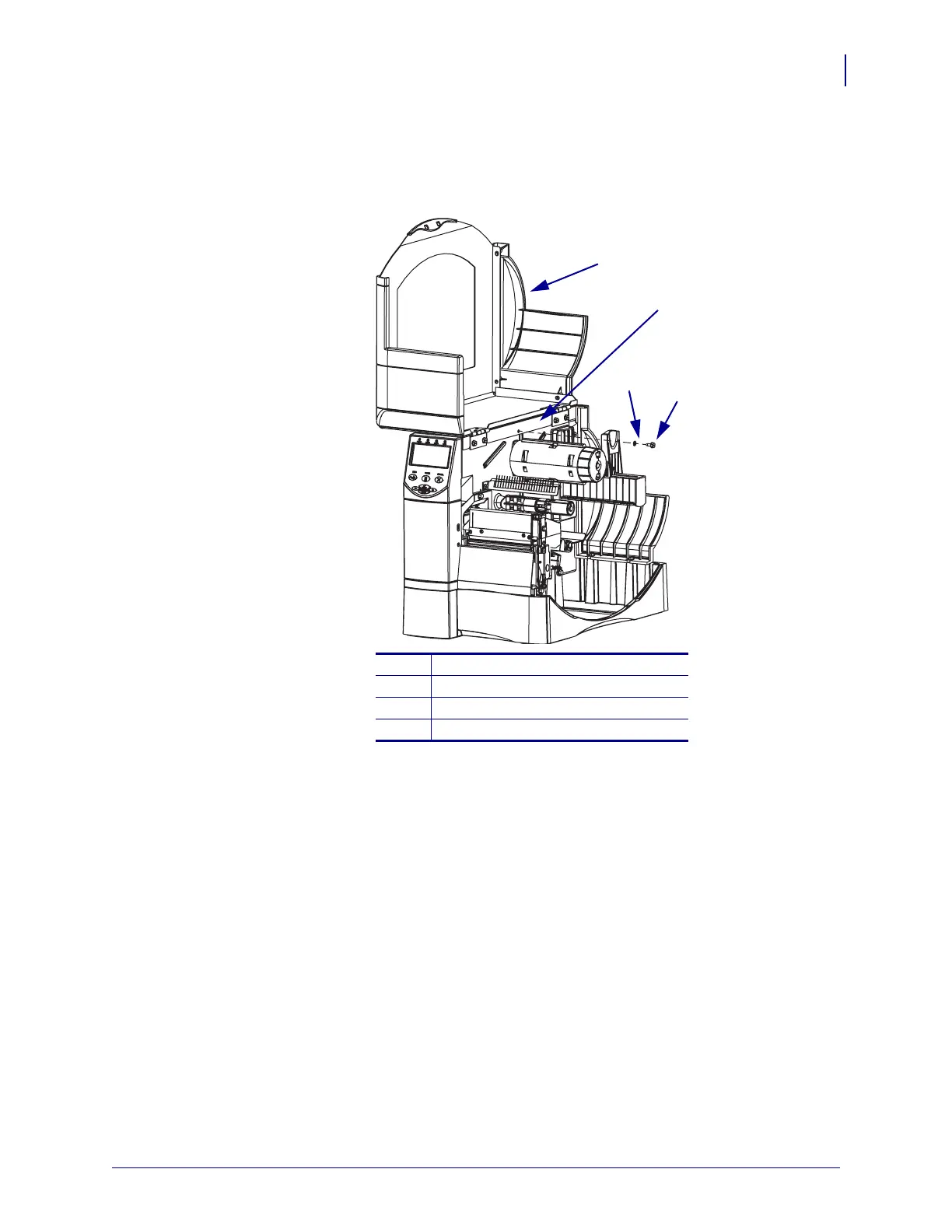

Figure 110 • Locate the Electronics Cover Mounting Screw
4. Close the media door.
1
Media door
2
Electronics cover
3
Washer
4
Mounting screw
1
2
3
4
