Corrective Maintenance
Printhead Cables
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Gain Access to the Power Supply
1.
2.
See Figure 51. Remove the standoff from the upper left of the power supply shield.
3. Remove the mounting screw from the upper right of the power supply shield.

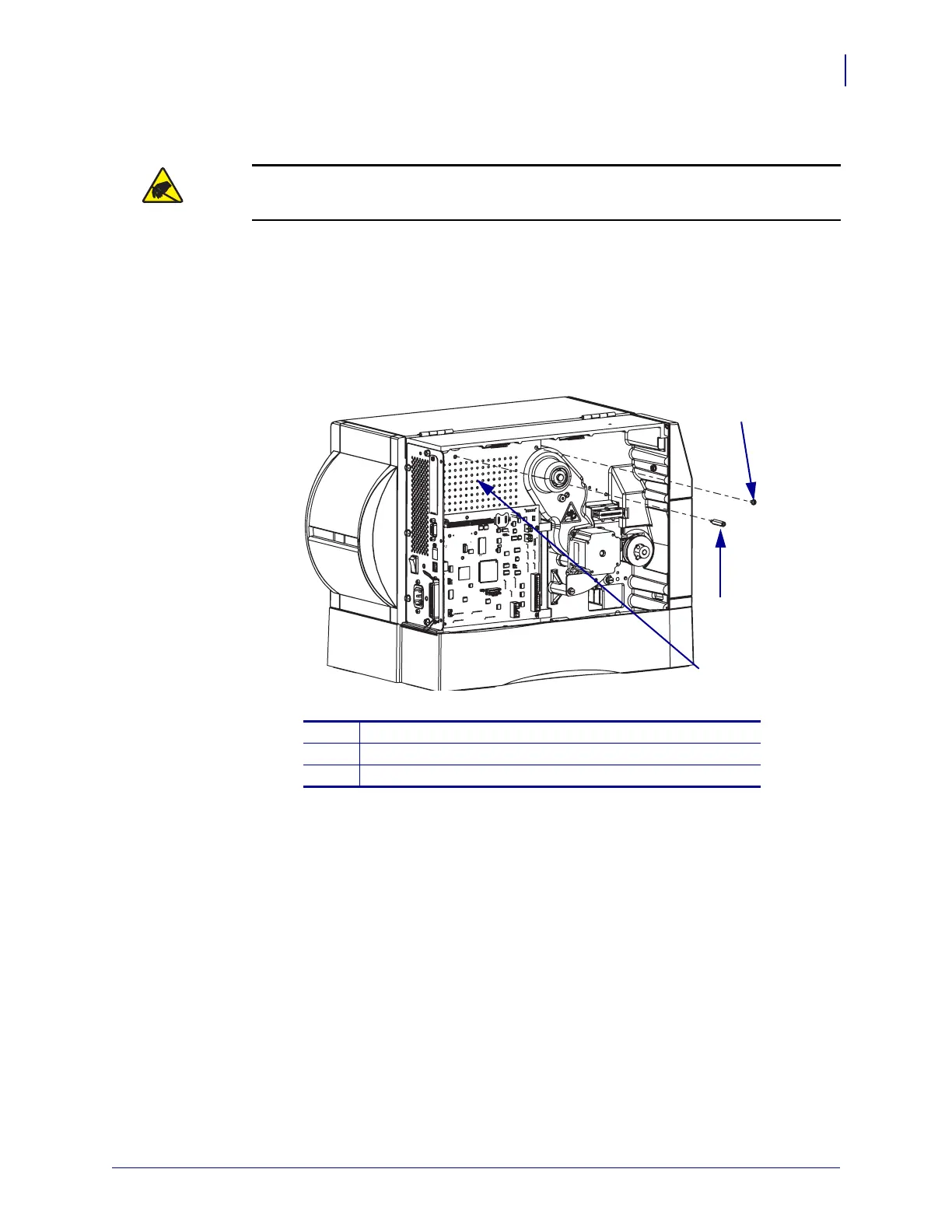

Figure 51 • Remove the Standoff and Screw
Caution • Observe proper electrostatic safety precautions when handling
static-sensitive components such as circuit boards and printheads.
Connect yourself to an antistatic device.
1
Mounting screw
2
Mounting standoff
3
Power supply shield
2
1
3
