Corrective Maintenance
Printhead Cables
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Reinstall the Cutter Assembly
1. See Figure 63 on page 186. Reinstall the cutter assembly on the hooks of the platen
housing.
a. Hold the cutter assembly as far to the left as possible, and align the larger part of the
step slot with the hooks on the platen housing.
b. Slide the cutter assembly onto the hooks and then push down and slide the assembly
to the right.
2. Using the cutter mounting screw removed earlier, secure the cutter assembly onto the
platen assembly.
The mounting tab on the cutter fits behind and attaches to the platen assembly.
3. Turn the latch assembly counterclockwise until it snaps in place.
Reinstall the Electronics Cover
1. See Figure 64. Install the electronics cover by aligning it and sliding down, ensuring the
lower flange is inside the base and the upper flange is between the main frame and the
media door.

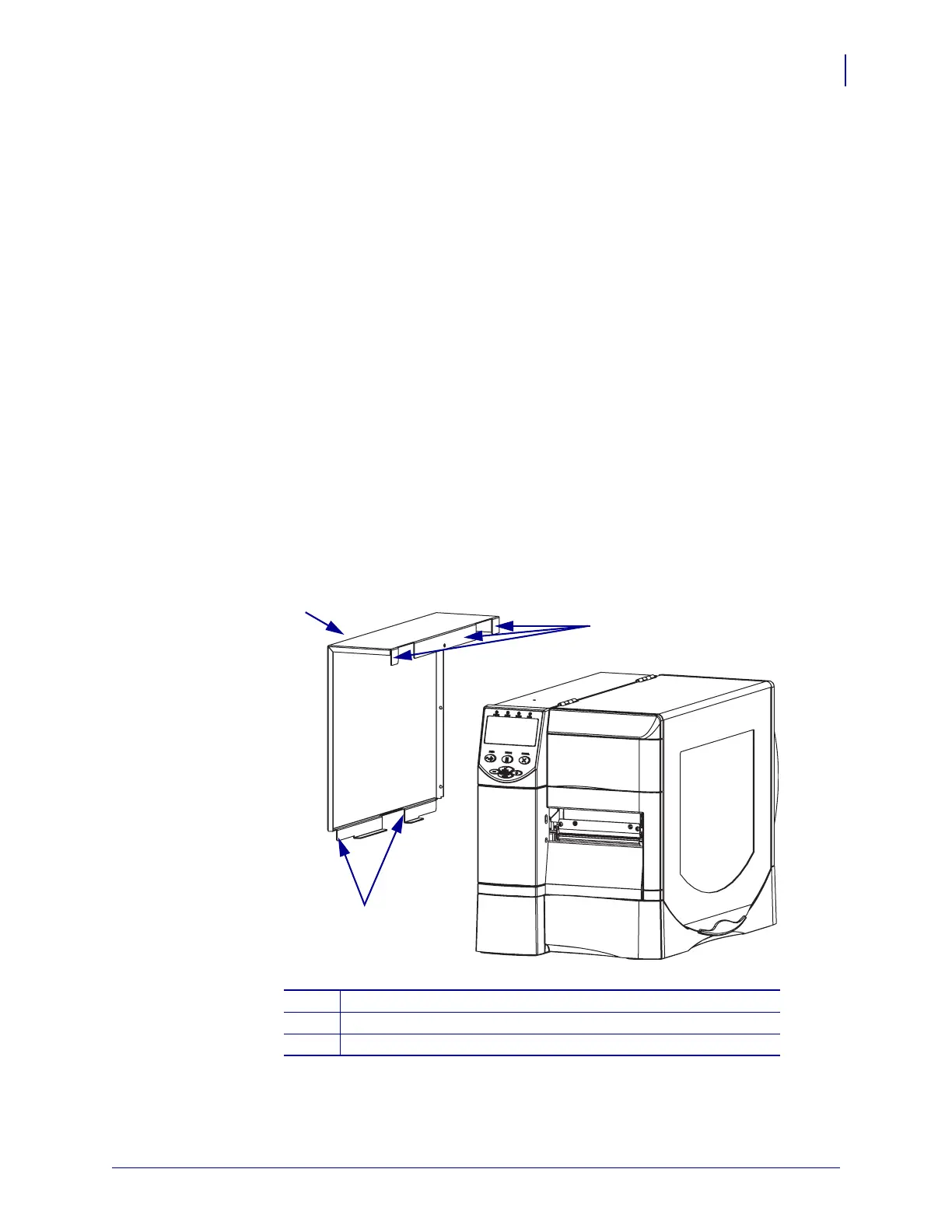

Figure 64 • Locate the Upper and Lower Flanges
1
Electronics cover
2
Upper flanges (3)
3
Lower flanges (2)
2
1
3

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
