Zebra ZM400 Series User Manual

Corrective Maintenance
Ribbon/Head Open Sensor Assembly
240
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Install the New Ribbon/Head Open Sensor Assembly
1. See Figure 107. Route the sensor wires, with connector, through the access hole in the
printer mainframe.

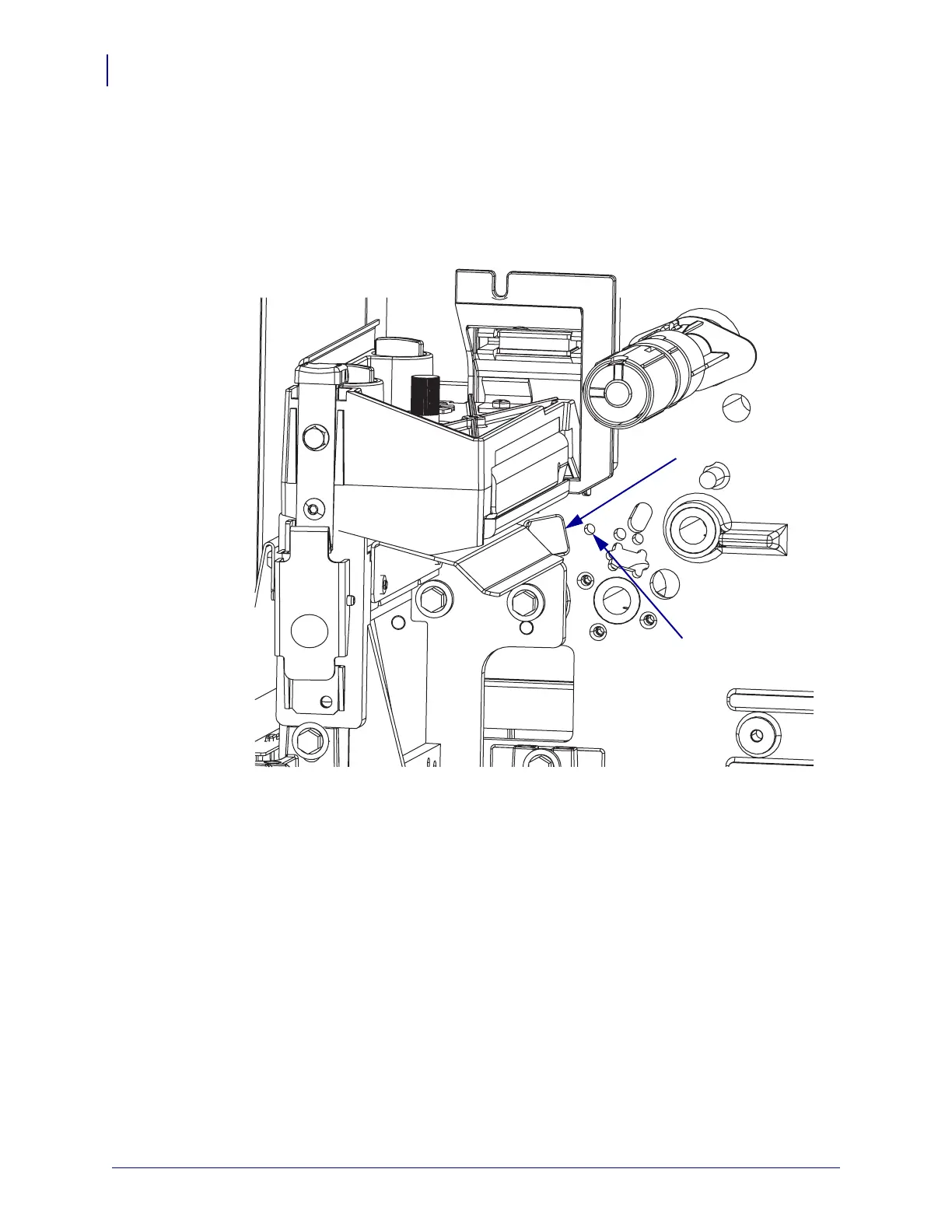

Figure 107 • Locate the Access Hole
2. Place the sensor cable wires back into the protective wrap.
3. Connect the media sensor cable to P4 on the MLB.
4. Install the ribbon/head open sensor to the mainframe with the new screw. Do not tighten it
at this time.
Access Hole
Mounting Hole

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
