Zebra ZM400 Series User Manual

Corrective Maintenance
Printhead Cables
176
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Remove the Printhead
1. See Figure 54. Note the positions and then rotate the two printhead pressure knobs to the
#1 position.

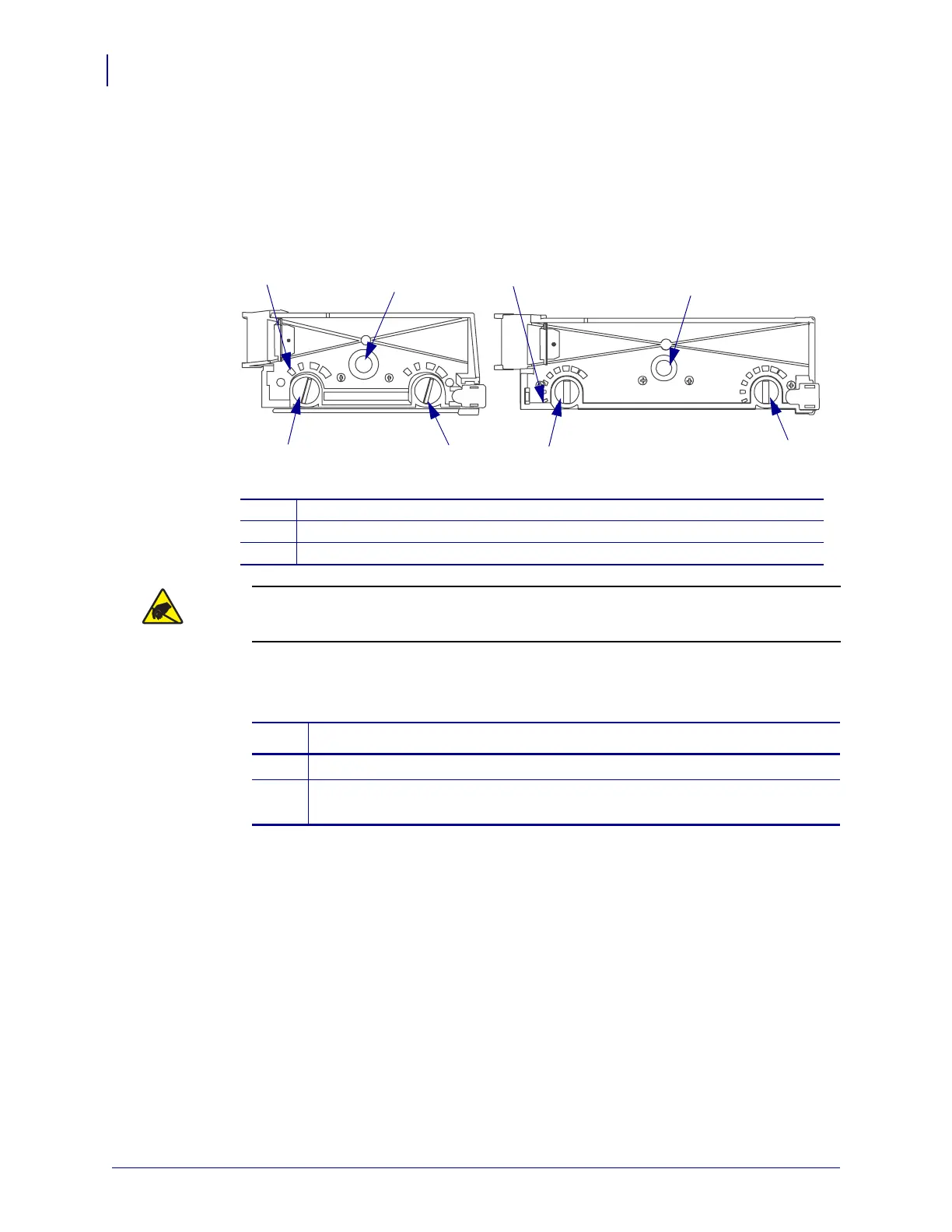

Figure 54 • Top View of Printhead Housing
2.
Connect yourself to an antistatic device.
3. Do you have a cutter option installed?
1
Position number one
2
Thumbscrew
3
Printhead Pressure Dials (2)
1
2
1
2
3
3
3
3
Front Front
ZM400 ZM600
Caution • Observe proper electrostatic safety precautions when handling
static-sensitive components such as circuit boards and printheads.
If… Then…
No Continue with step 4.
Yes You may find it easier to replace the printhead with the cutter assembly
removed. Go to Remove the Cutter Assembly on page 186.

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
