Ribbon Take-Up Spindle Clutch
Ribbon Take-up Spindle Clutch
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Reinstall the Gear Cover
1. See Figure 135 on page 270. With the marked side facing out, slide the compound gear
into the printer. Ensure that the gears mesh.
2. Align the gear cover and slide it back into place.
3. Install the mounting screw in the proper hole in the gear cover, then through the
compound gear, and then into the proper mounting hole in the main frame.
4. Tighten the mounting screw.
Reinstall the Electronics Cover
1. See Figure 138. Install the electronics cover by aligning it and sliding down, ensuring the
lower flange is inside the base and the upper flange is between the main frame and the
media door.

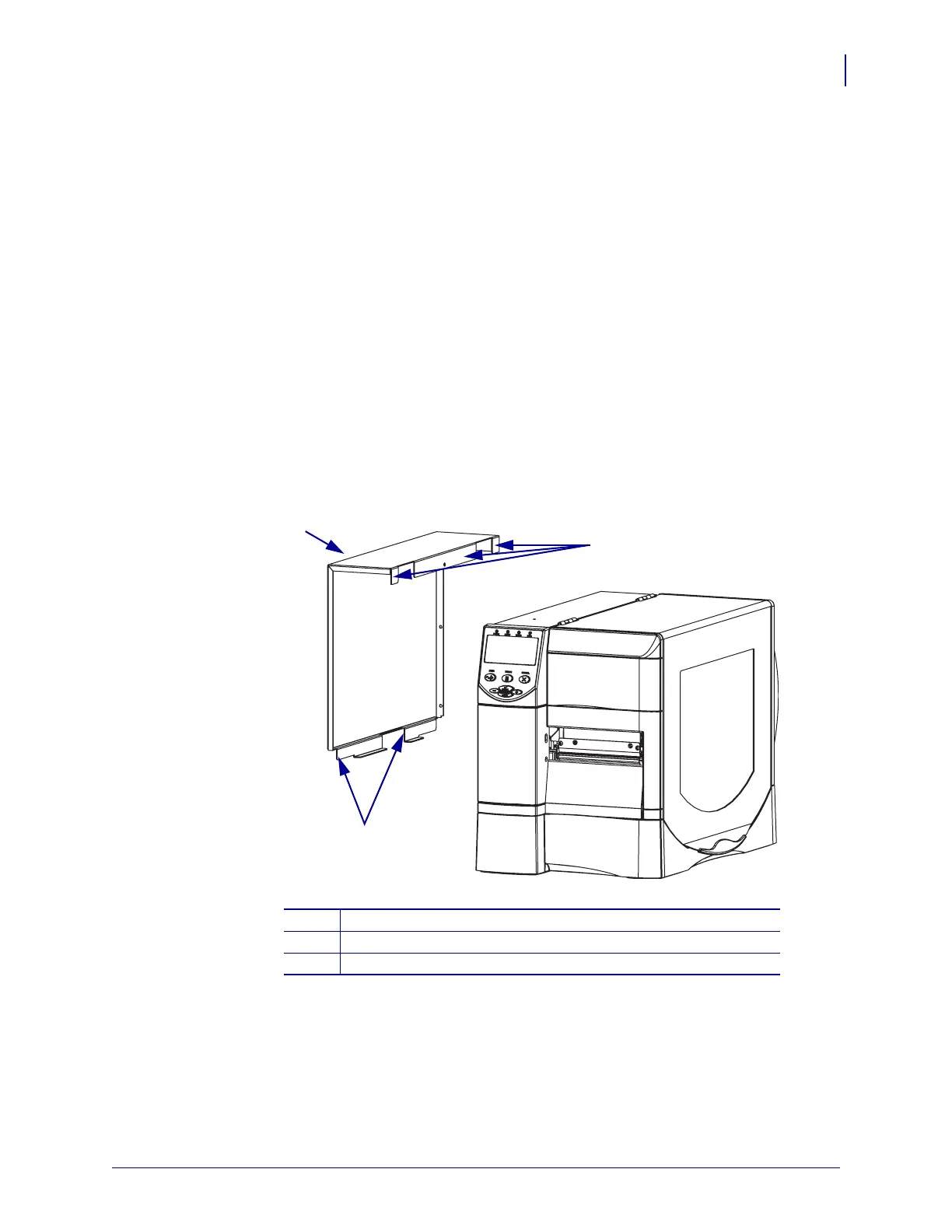

Figure 138 • Locate the Upper and Lower Flanges
2. See Figure 132 on page 268. Install the four mounting screws.
3. See Figure 131 on page 267. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
1
Electronics Cover
2
Upper Flanges (3)
3
Lower Flanges (2)
2
1
3
