Ribbon Take-Up Spindle Clutch
Ribbon Take-up Spindle Clutch
270
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
2. See Figure 135. Mark the proper mounting hole in the gear cover.
This is done to be sure it is mounted correctly when the ribbon take-up spindle installation
is complete.
3. Remove the gear cover mounting screw.

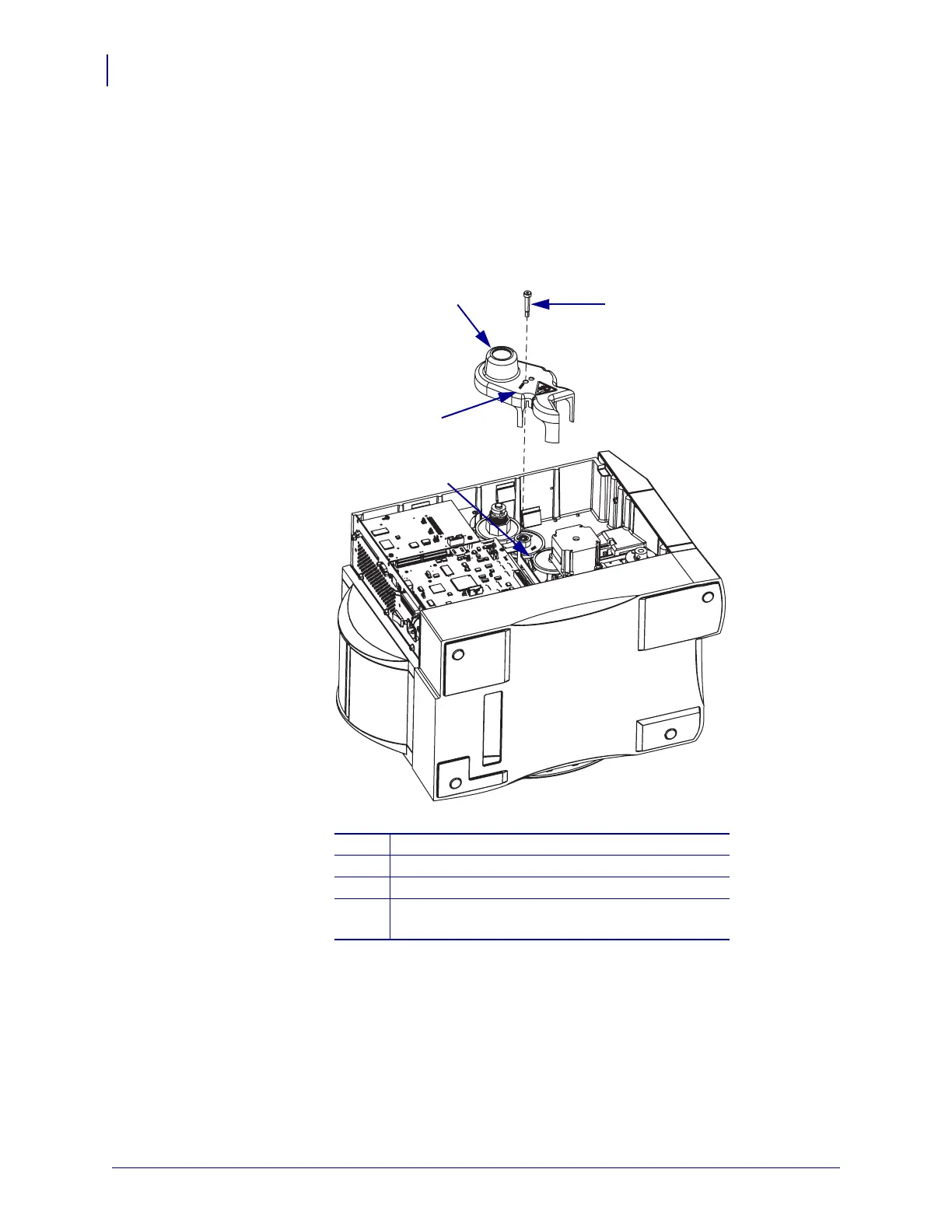

Figure 135 • Remove the Gear Cover
4. Slide the cover off the drive assembly.
5. Mark the outside facing side of the compound gear and remove it.
This is done to be sure it is mounted correctly when the ribbon take-up spindle installation
is complete.
6. Turn the printer back up on its base.
1
Gear cover
2
Mounting screw
3
Mark the proper mounting hole.
4
Compound gear. Mark the side of the compound
gear that faces out.
1
2
3
4

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
