Zebra ZM400 Series

Corrective Maintenance
226
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Install the New Upper Media Sensor Assembly
1. Remove the new lower sensor assembly from the maintenance kit.
2.

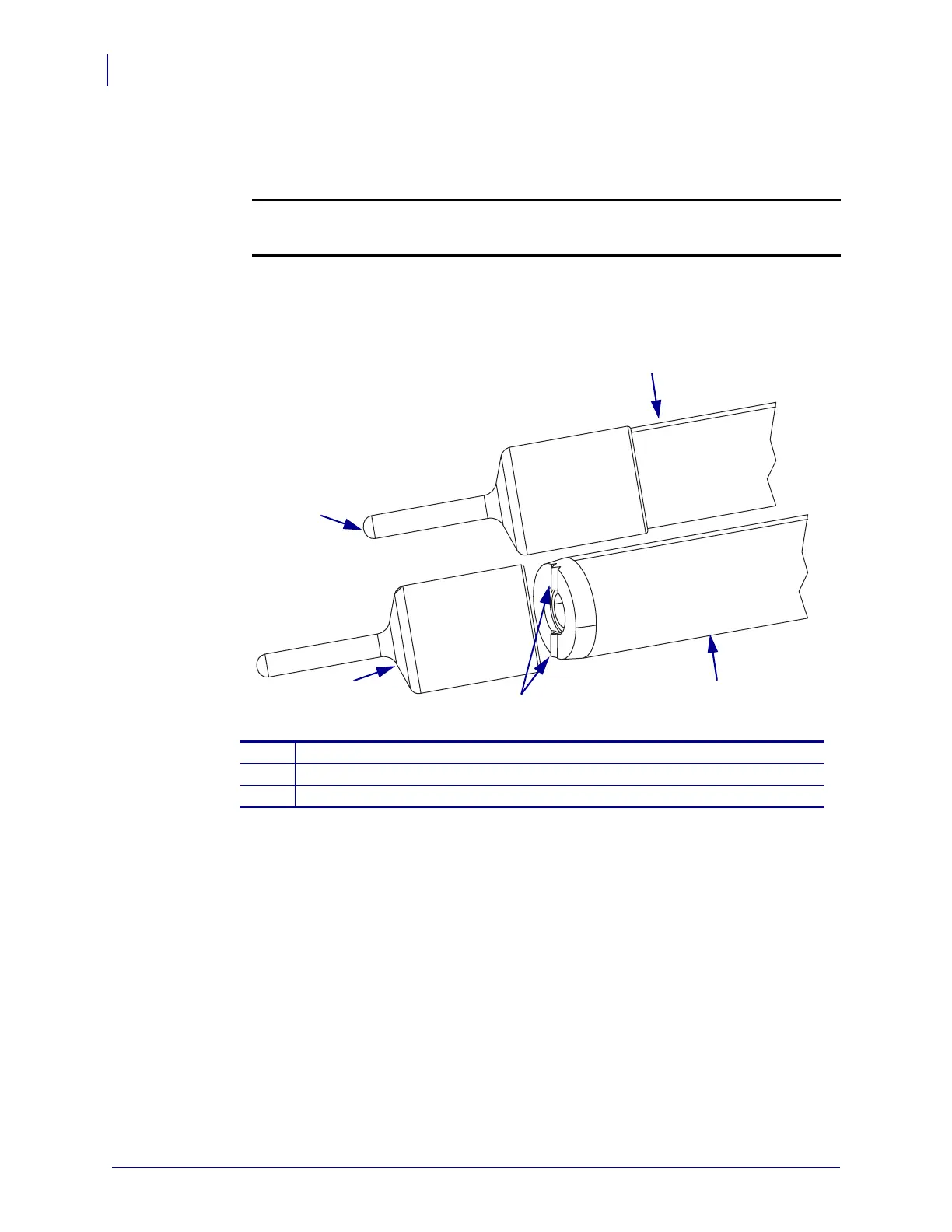

Figure 96 • Remove the Protective Cap
Caution • The end of the shaft has barbs that are used for alignment. Use caution not to
damage the barbs.
See Figure 96. Remove the protective cap.
1
Shaft
2
Protective cap
3
Barbs
1
2
3
2
1
