Zebra ZM400 Series User Manual

225
Corrective Maintenance
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
4. See Figure 95. Slowly slide the lower media sensor assembly out of the printer, while
guiding the sensor cable through the hole in the main frame.
The cable connector will need to be turned sideways.

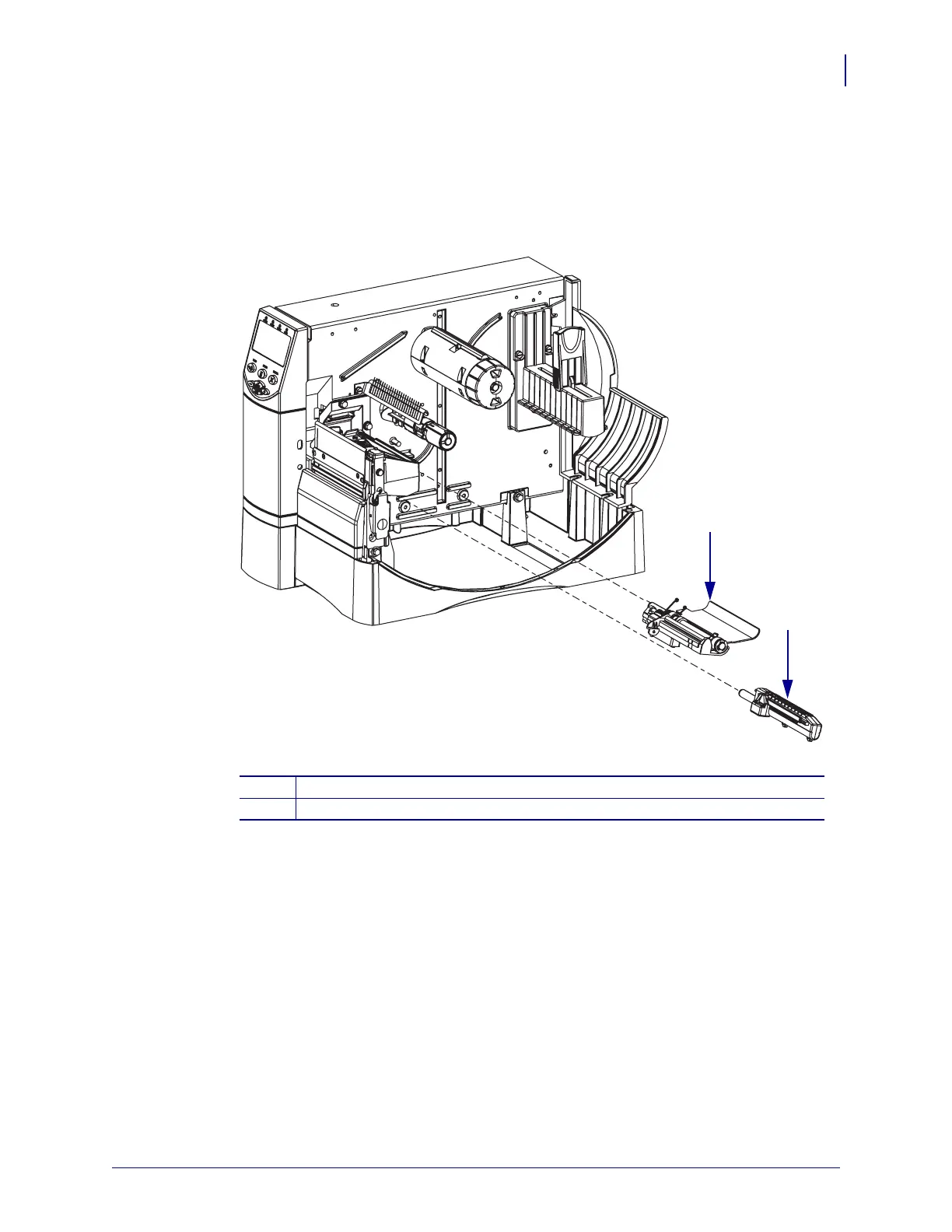

Figure 95 • Remove the Media Sensor Assemblies
5. Slowly slide the upper media sensor assembly out of the printer, while guiding the sensor
cables through the holes in the main frame.
1
Upper media sensor assembly
2
Lower media sensor assembly
1
2

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
