Connect the Printer to a Power Source
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Power Cord Specifications
Depending on how your printer was ordered, a power cord may or may not be included. If one
is not included or if the one included is not suitable for your requirements, see Figure 6 and
refer to the following guidelines:
• The overall cord length must be less than 9.8 ft. (3 m).
• The cord must be rated for at least 10 A, 250 V.
• The chassis ground (earth) must be connected to ensure safety and reduce electromagnetic
interference.

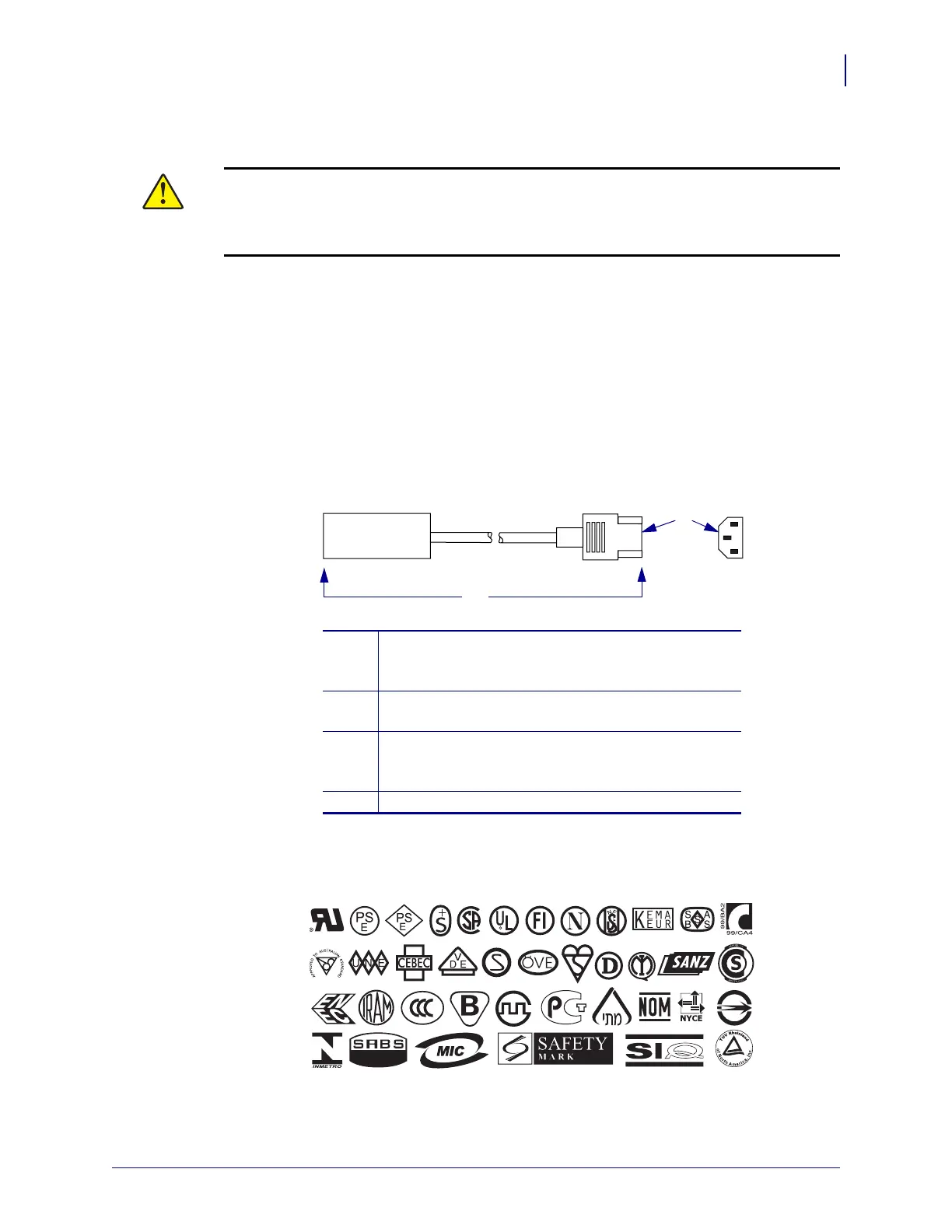

Figure 6 • Power Cord Specifications
Figure 7 • International Safety Organization Certifications
Caution • For personnel and equipment safety, always use an approved three-conductor
power cord specific to the region or country intended for installation. This cord must use an
IEC 320 female connector and the appropriate region-specific, three-conductor grounded
plug configuration.
1
AC power plug for your country—This should bear
the certification mark of at least one of the known
international safety organizations (Figure 7).
2
3-conductor HAR cable or other cable approved for
your country.
3
IEC 320 connector—This should bear the
certification mark of at least one of the known
international safety organizations (Figure 7).
4
Length ≤ 9.8 ft. (3 m). Rating 10 Amp, 250 VAC.
3
1
2
4

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
