Zebra ZM400 Series User Manual

373
Corrective Maintenance
Platen Coupling
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Remove the Drive Belt and Platen Pulley
1. See Figure 232. Loosen the stepper motor locking and pivot screws.

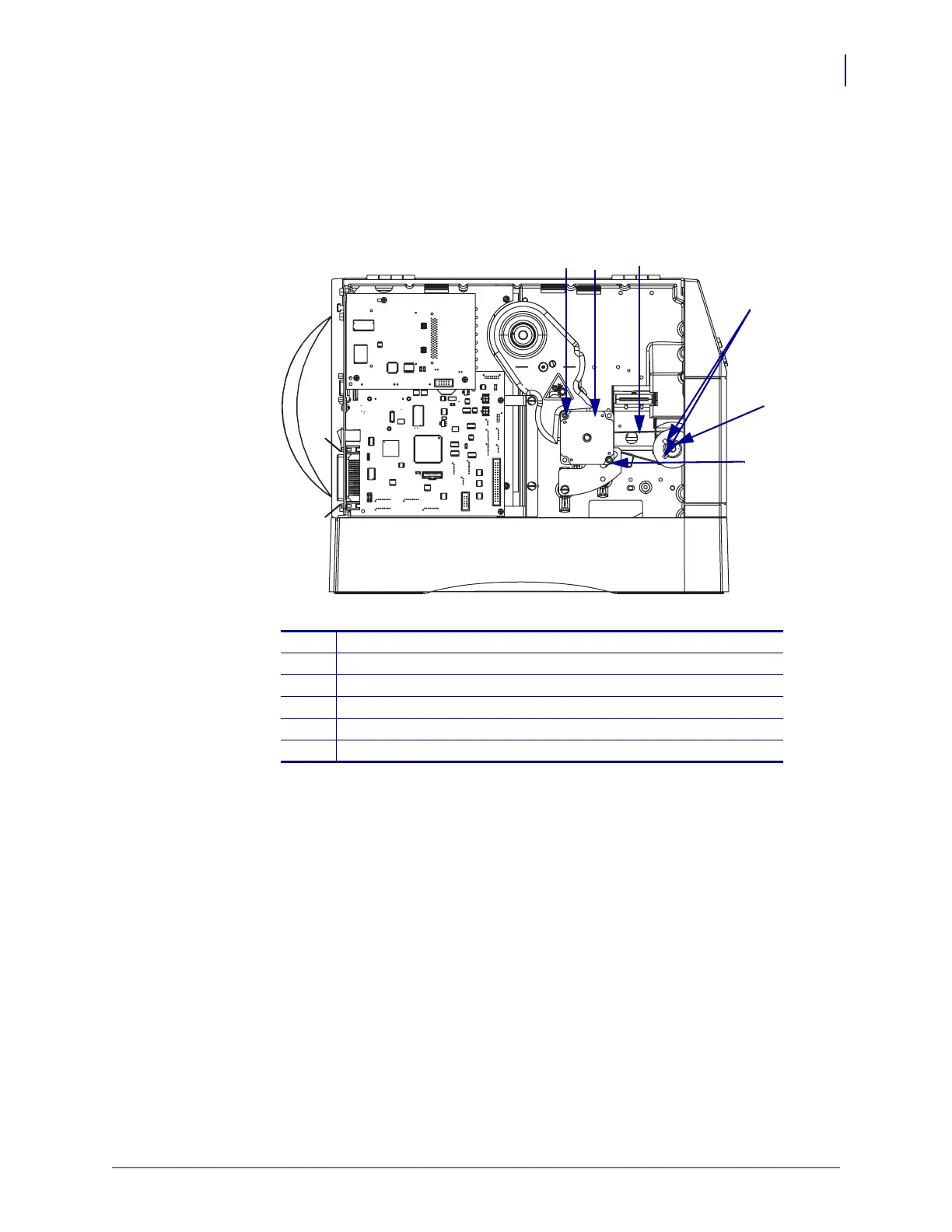

Figure 232 • Remove the Drive Belt
2. Swing the stepper motor to the right to loosen the drive belt and then tighten the locking
screw to snug it in place.
3. Remove the drive belt from the stepper motor and then from the platen pulley. Set the
drive belt aside for reuse.
4. Loosen the two set screws securing the platen pulley to the coupling assembly.
1
Pivot screw
2
Stepper motor
3
Drive belt
4
Set screws (2)
5
Platen pulley
6
Locking screw
1
3
6
2
5
4

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
