Corrective Maintenance
Control Panel
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Reinstall the Electronics Cover
1. See Figure 250. Install the electronics cover by aligning it and sliding down, ensuring the
lower flanges are inside the base and the upper flanges are between the main frame and the
media door.

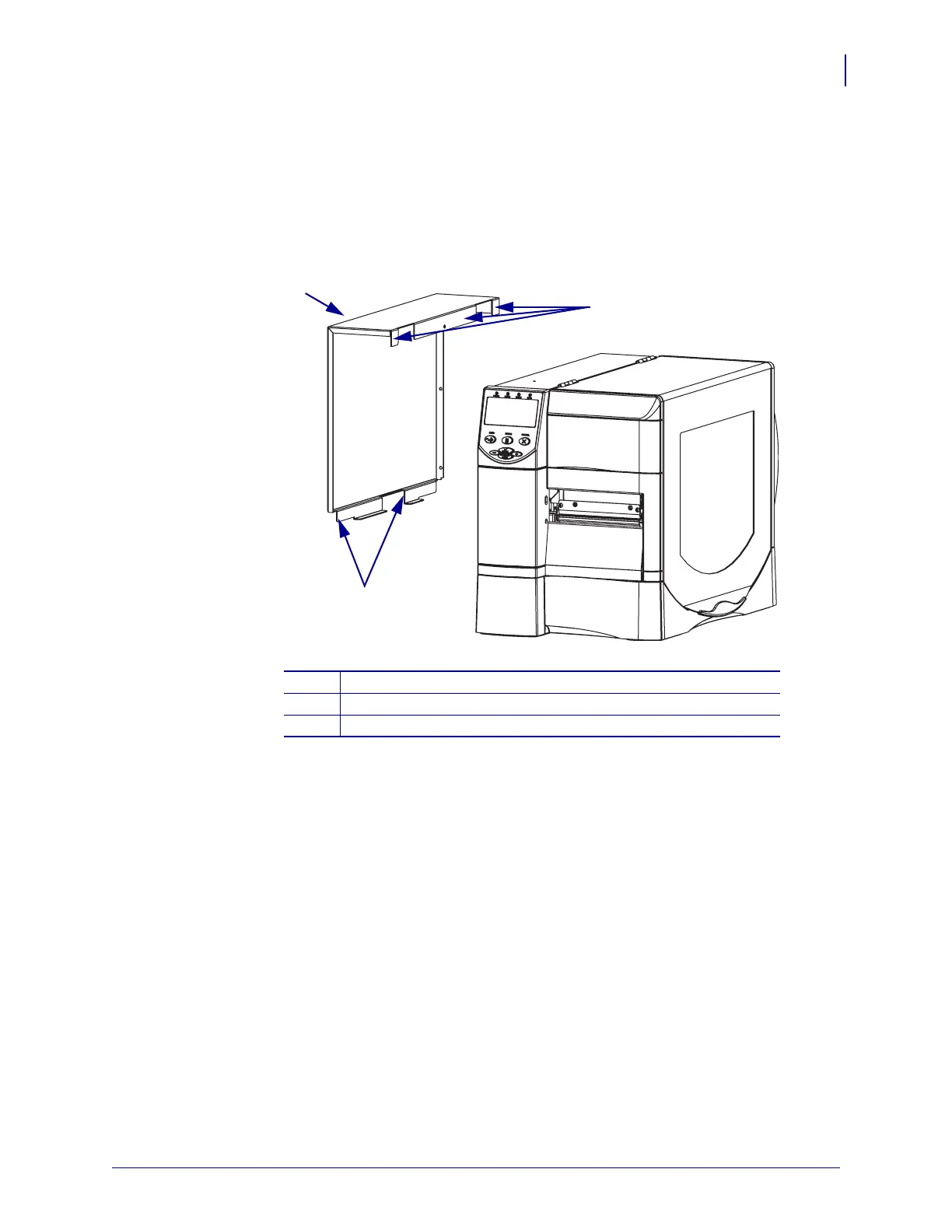

Figure 250 • Locate the Upper and Lower Flanges
2. See Figure 246 on page 390. Install the four mounting screws.
3. See Figure 245 on page 389. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
5. Reinstall the AC power cord and data cables.
6. Turn on (l) the printer.
1
Electronics cover
2
Upper flanges (3)
3
Lower flanges (2)
2
1
3
