System Description
Control Panel
32
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Control Panel
The control panel contains the lights that indicate basic operation and the buttons that you may
need to press during basic operation. The control panel buttons and lights are labeled in
Figure 5. Descriptions for each are located in Table 1 and Table 2.

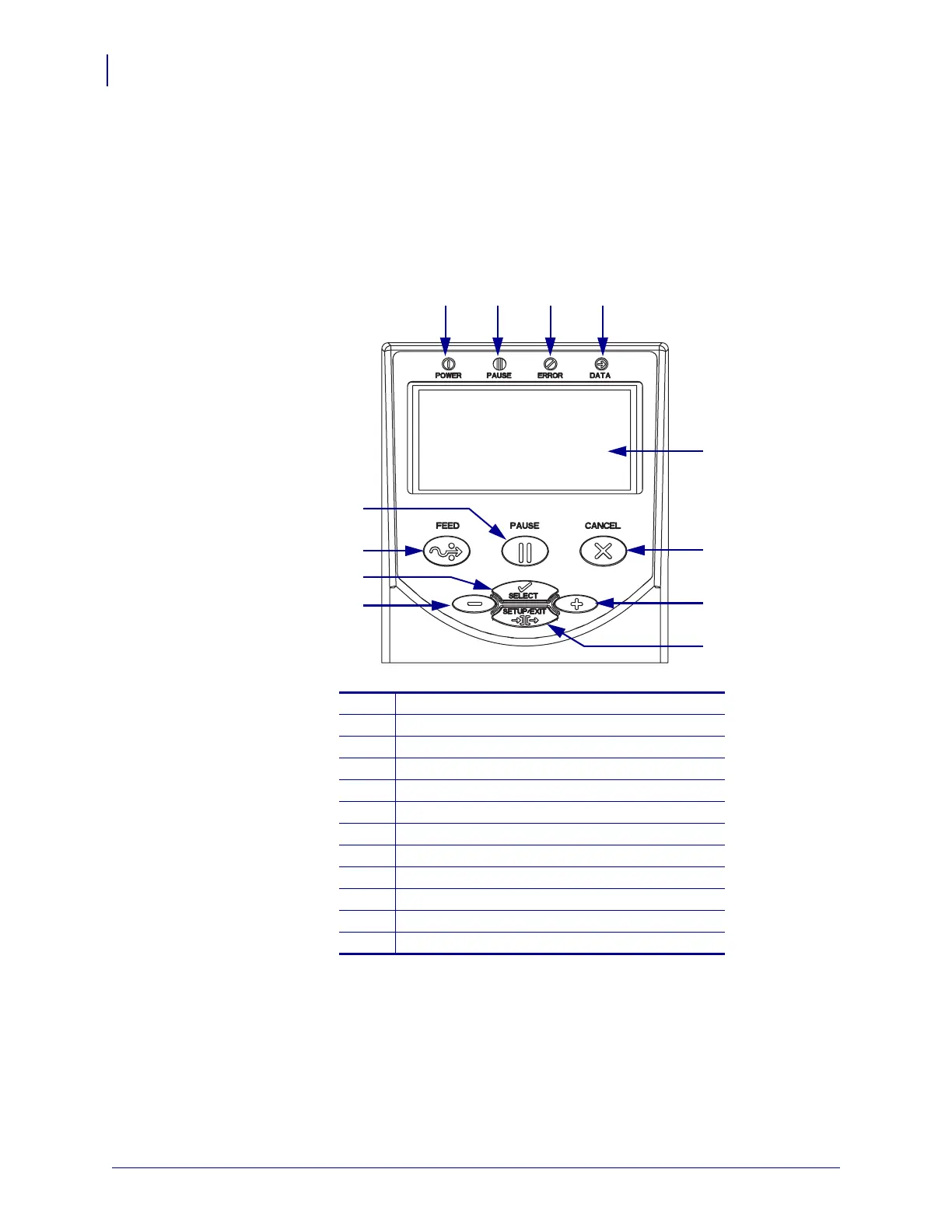

Figure 5 • Control Panel
1
Power LED
2
Pause LED
3
Error LED
4
Data LED
5
LCD
6
CANCEL button
7
PLUS (+) button
8
SETUP/EXIT button
9
MINUS (–) button
10
SELECT button
11
FEED button
12
PAUSE button
1 2 3 4
5
6
7
8
11
12
10
9

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
